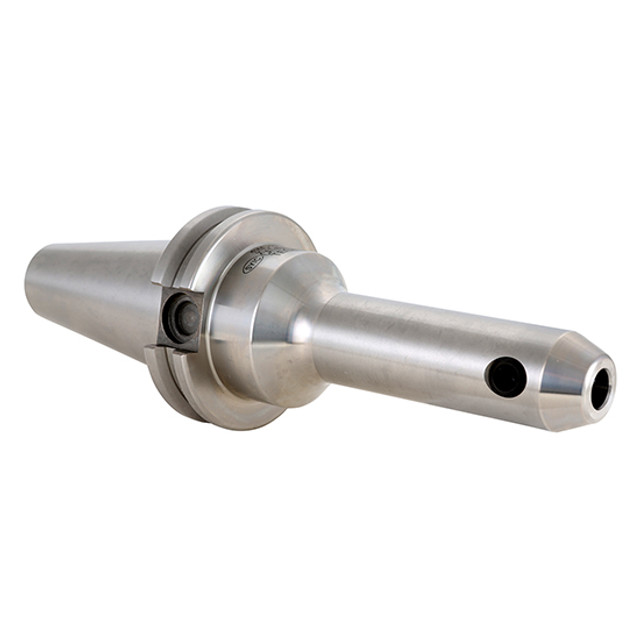

Picture of Techniks 22917-4.63 CAT40 End Mill 0.5000 12.70mm - 1/2 4.6300 Gauge Length

Techniks 22917-4.63 CAT40 End Mill 0.5000 12.70mm - 1/2 4.6300 Gauge Length

Part Number: TEC22917-4.63 ISO: 22917-4.63

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419782
Vendor: Sussex Tool and Supply
$143.00
Techniks Techniks End Mill Holders Are Machined To An H5 I.D. Hole Tolerance. Extended Length End Mills Are Balanced To 10,000 Rpm To Save Spindle Bearing Life. Taper Is Ground To At3 Standard. Lab Certified With An Individual Performance Report. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 40
Overall Length 7.3200 185.93MM
Coolant Thru Thru Coolant
Tool Dia 2.5000 63.50MM - 2-1/2
Type Of Tool End Mill Holder
Insert/Tool TOOL
Part Side WELDON0.5000
Output Type Weldon
Output 0.5000 12.70MM - 1/2
CNC Type Tool End Mill
CNC Conection CAT40
CNC Out Put WELDON0.5000
Gauge Length 4.6300
Max RPM 15000
Nose Dia/Nut Dia 1.250
Balanced To 000 RPM at G6.3, 15
