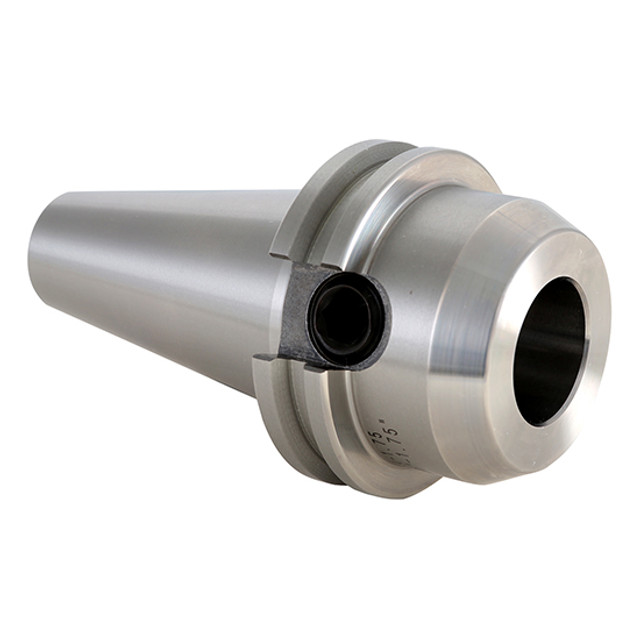

Picture of Techniks 22916-1.75 CAT40 End Mill 0.4375 11.11mm - 7/16 1.7500 Gauge Length

Techniks 22916-1.75 CAT40 End Mill 0.4375 11.11mm - 7/16 1.7500 Gauge Length

Part Number: TEC22916-1.75 ISO: 22916-1.75

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419772
Vendor: Sussex Tool and Supply
$124.00
Techniks Techniks End Mill Holders Are Machined To H5 I.D. Tolerance. Stubby End Mills Are Balanced To 10,000 Rpm To Save Spindle Life. Taper Is Ground To At3 For Maximum Spindle Contact. Each Holder Is Lab Certified And Comes With A Performance Report. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 40
Overall Length 4.4400 112.78MM
Coolant Thru Thru Coolant
Tool Dia 2.5000 63.50MM - 2-1/2
Type Of Tool End Mill Holder
Insert/Tool TOOL
Part Side WELDON0.4375
Output Type Weldon
Output 0.4375 11.11MM - 7/16
CNC Type Tool End Mill
CNC Conection CAT40
CNC Out Put WELDON0.4375
Gauge Length 1.7500
Max RPM 15000
Nose Dia/Nut Dia 1.130
Balanced To 000 RPM at G6.3, 15
