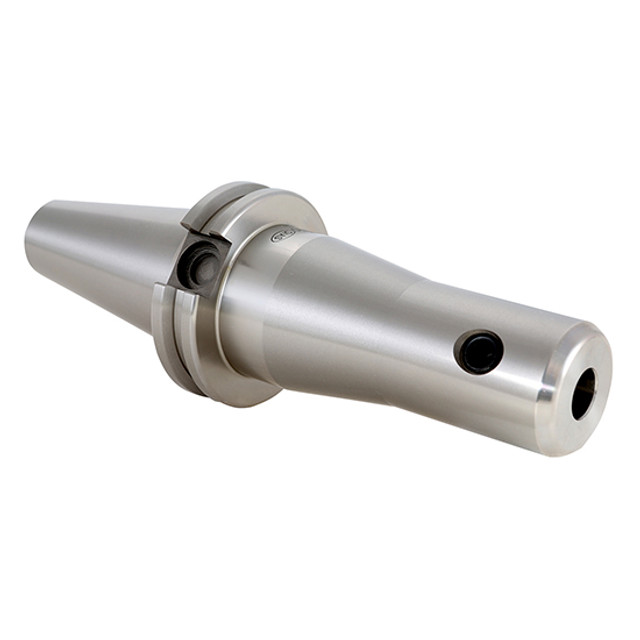

Picture of Techniks 22909-4.72-RR CAT40 End Mill 0.1875 4.76mm - 3/16 4.7200 Gauge Length

Techniks 22909-4.72-RR CAT40 End Mill 0.1875 4.76mm - 3/16 4.7200 Gauge Length

Part Number: TEC22909-4.72-RR ISO: 22909-4.72-RR

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419731
Vendor: Sussex Tool and Supply
$180.00
Techniks Rigid Reach Holders Have An Extra Thick Neck For Improved Rigidity And Cutting. The I.D. Hole Is H5 Standard. Rigid Reach Holders Are Balanced To 10,000 Rpm And The Taper Is Ground To At3. Lab Certified And Comes With A Performance Report. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 40
Overall Length 7.4100 188.21MM
Coolant Thru Thru Coolant
Tool Dia 2.5000 63.50MM - 2-1/2
Type Of Tool End Mill Holder
Insert/Tool TOOL
Part Side WELDON0.1875
Output Type Weldon
Output 0.1875 4.76MM - 3/16
CNC Type Tool End Mill
CNC Conection CAT40
CNC Out Put WELDON0.1875
Gauge Length 4.7200
Max RPM 15000
Nose Dia/Nut Dia 0.780
Balanced To 000 RPM at G6.3, 15
