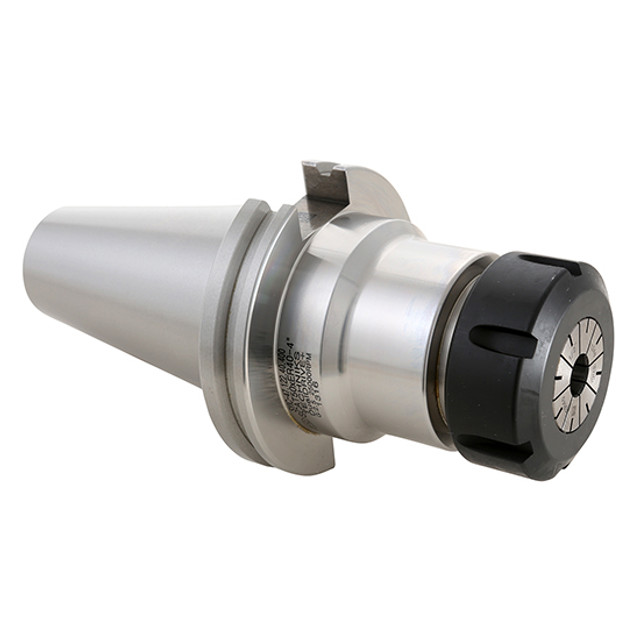

Picture of Techniks 22335 CAT50 Collet Chuck ER50 6.0000 Gauge Length

Techniks 22335 CAT50 Collet Chuck ER50 6.0000 Gauge Length

Part Number: TEC22335 ISO: 22335
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1419655
Vendor: Sussex Tool and Supply
$275.19

Description

Techniks Techniks Chucks Are Balanced To 25,000 Rpm At G2.5 Tolerance. Lab Tested For Accuracy And Balance And Come With Their Own Performance Report. Techniks Holders Achieve 0.0001" Or Less T.I.R. As Measured From The Taper To The Collet Pocket. Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Type Of Tool Collet Chuck
Output Type ER
CNC Type Tool Collet Chuck
Dimensions & Sizing
Overall Length 10.0000 254.00MM
Tool Dia 3.8750 98.42MM - 3-7/8
Gauge Length 6.0000
Nose Dia/Nut Dia 3.070
Performance & Capacity
Output 50
Max RPM 25000
Balanced To 000 RPM at G2.5, 25
Materials & Finish
Tool Material Steel
Compatibility & Fit
CNC Connection CAT50
