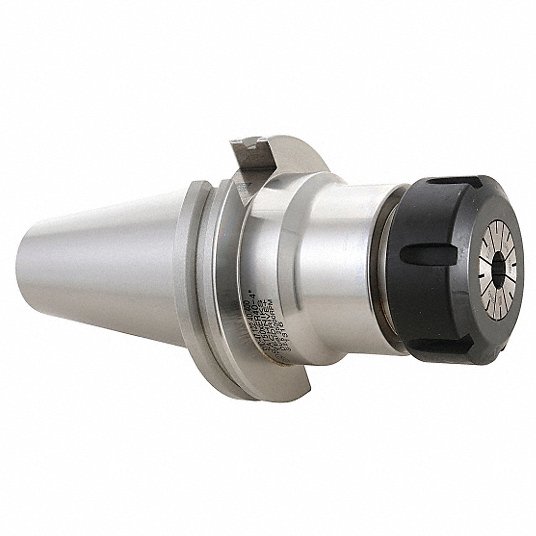

Picture of Techniks 22305F CAT50 Collet Chuck ER25 6.0000 Gauge Length

Techniks 22305F CAT50 Collet Chuck ER25 6.0000 Gauge Length

Part Number: TEC22305F ISO: 22305F

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419635
Vendor: Sussex Tool and Supply
$276.00
Techniks Coolflex Collet Chuck Offer Coolant Either Through The Spindle Or Flange (Din B). Remove Stop Screws For Din B. Balanced To 25,000 Rpm At G2.5 With T.I.R. Of 0.0001". Techniks Certified For Accuracy And Balance And Comes With A Lab Report. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 50
Overall Length 10.0000 254.00MM
Tool Dia 3.8750 98.42MM - 3-7/8
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER25
Output Type ER
Output 25
CNC Type Tool Collet Chuck
CNC Conection CAT50
CNC Out Put ER25
Gauge Length 6.0000
Max RPM 25000
Nose Dia/Nut Dia 1.650
Balanced To 000 RPM at G2.5, 25
Flange Coolant DIN A/B
