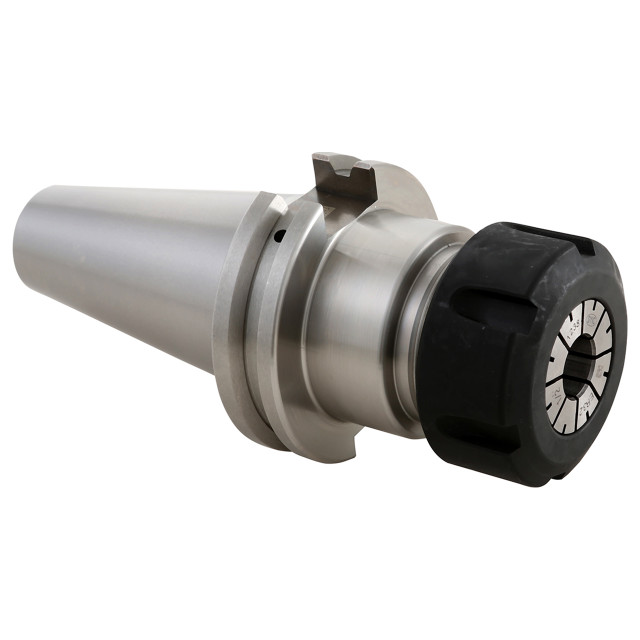

Picture of Techniks 22295-12T CAT50 Collet Chuck ER20 12.0000 Gauge Length

Techniks 22295-12T CAT50 Collet Chuck ER20 12.0000 Gauge Length

Part Number: TEC22295-12T ISO: 22295-12T

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419630
Vendor: Sussex Tool and Supply
$585.00
Techniks Techniks Collet Chucks Are Balanced To 25,000 Rpm At G2.5 Tolerance. Individually Lab Tested For Accuracy And Balance. Individual Performance Report. Techniks Holders Achieve 0.0001" Or Less T.I.R. As Measured From The Taper To The Collet Pocket. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 50
Overall Length 16.0000 406.40MM
Tool Dia 3.8750 98.42MM - 3-7/8
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER20
Output Type ER
Output 20
CNC Type Tool Collet Chuck
CNC Conection CAT50
CNC Out Put ER20
Gauge Length 12.0000
Max RPM 25000
Nose Dia/Nut Dia 1.340
Balanced To 000 RPM at G2.5, 25
