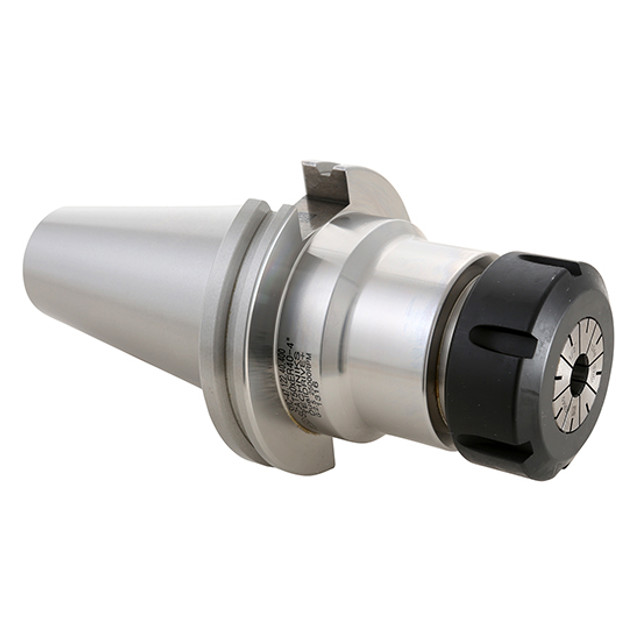

Picture of Techniks 22281 CAT50 Collet Chuck ER16 4.0000 Gauge Length

Techniks 22281 CAT50 Collet Chuck ER16 4.0000 Gauge Length

Part Number: TEC22281 ISO: 22281

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419617
Vendor: Sussex Tool and Supply
$223.00
Techniks Techniks Collet Chucks Are Balanced To 25,000 Rpm At G2.5 Tolerance. Individually Lab Tested For Accuracy And Balance. Individual Performance Report. Techniks Holders Achieve 0.0001" Or Less T.I.R. As Measured From The Taper To The Collet Pocket. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 50
Overall Length 8.0000 203.20MM
Tool Dia 3.8750 98.42MM - 3-7/8
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER16
Output Type ER
Output 16
CNC Type Tool Collet Chuck
CNC Conection CAT50
CNC Out Put ER16
Gauge Length 4.0000
Max RPM 25000
Nose Dia/Nut Dia 1.080
Balanced To 000 RPM at G2.5, 25
