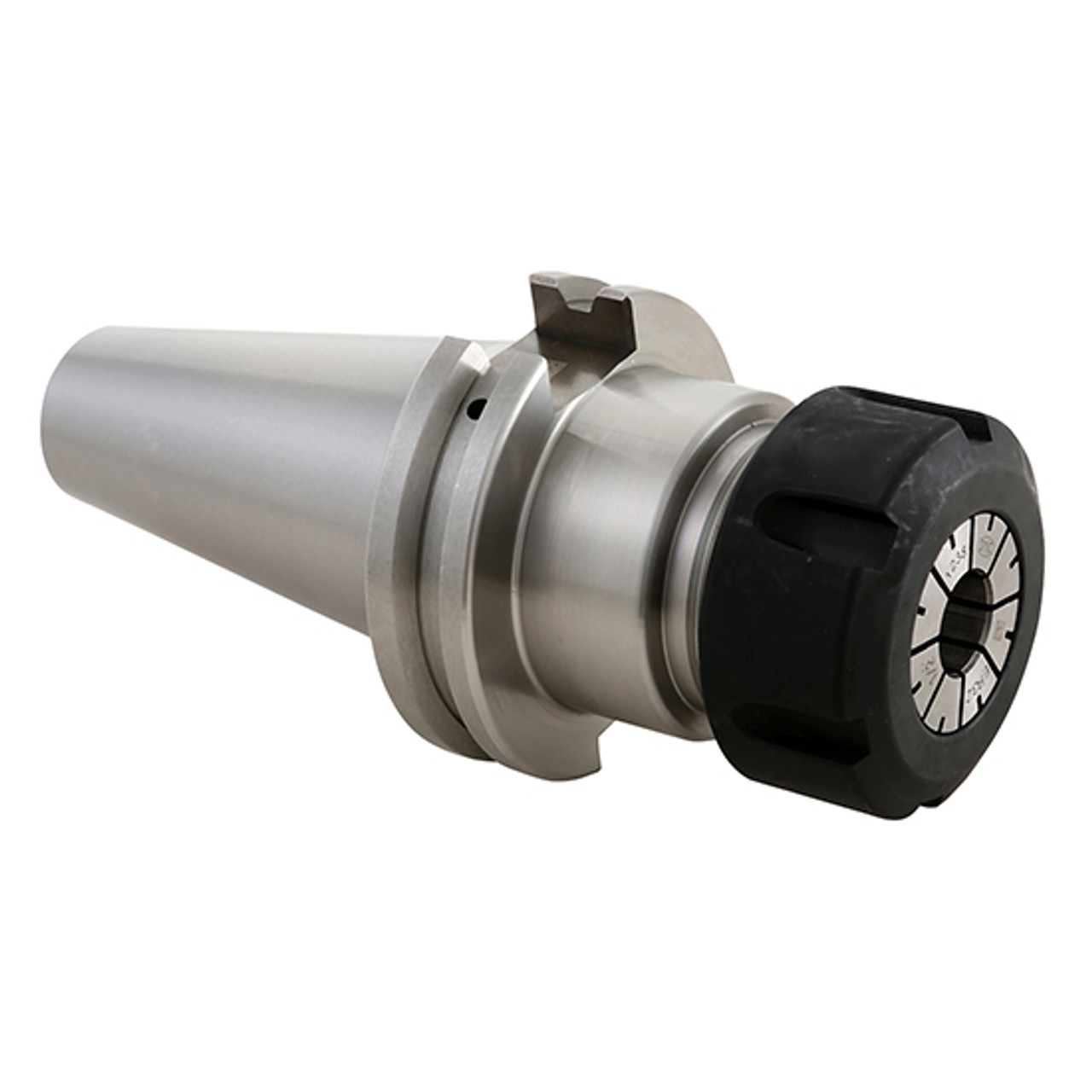

Picture of Techniks 22261 CAT40 Collet Chuck ER40 3.1500 Gauge Length

Techniks 22261 CAT40 Collet Chuck ER40 3.1500 Gauge Length

Part Number: TEC22261 ISO: 22261

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419610
Vendor: Sussex Tool and Supply
$205.00
Techniks Techniks Collet Chucks Are Balanced To 25,000 Rpm At G2.5 Tolerance. Individually Lab Tested For Accuracy And Balance. Individual Performance Report. Techniks Holders Achieve 0.0001" Or Less T.I.R. As Measured From The Taper To The Collet Pocket. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 40
Overall Length 5.8370 148.25MM
Tool Dia 2.5000 63.50MM - 2-1/2
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER40
Output Type ER
Output 40
CNC Type Tool Collet Chuck
CNC Conection CAT40
CNC Out Put ER40
Gauge Length 3.1500
Max RPM 25000
Nose Dia/Nut Dia 2.480
Balanced To 000 RPM at G2.5, 25
