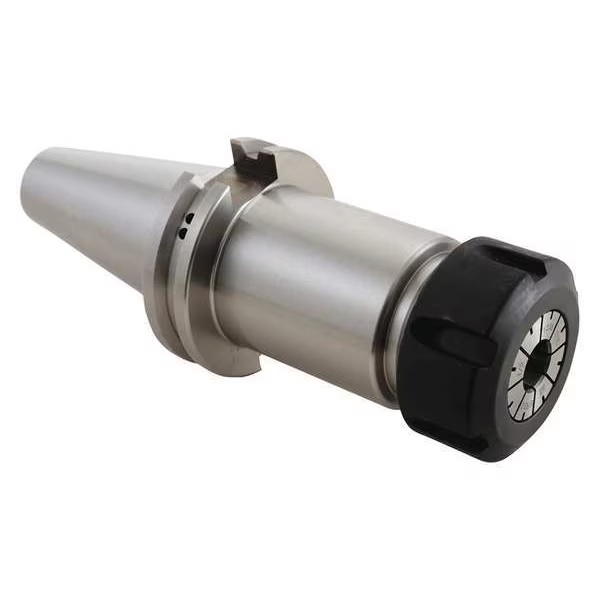

Picture of Techniks 22257F CAT40 Collet Chuck ER32 6.0000 Gauge Length

Techniks 22257F CAT40 Collet Chuck ER32 6.0000 Gauge Length

Part Number: TEC22257F ISO: 22257F

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419606
Vendor: Sussex Tool and Supply
$277.00
Techniks Coolflex Collet Chuck Offer Coolant Either Through The Spindle Or Flange (Din B). Remove Stop Screws For Din B. Balanced To 25,000 Rpm At G2.5 With T.I.R. Of 0.0001". Techniks Certified For Accuracy And Balance And Comes With A Lab Report. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 40
Overall Length 8.6870 220.64MM
Tool Dia 2.5000 63.50MM - 2-1/2
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER32
Output Type ER
Output 32
CNC Type Tool Collet Chuck
CNC Conection CAT40
CNC Out Put ER32
Gauge Length 6.0000
Max RPM 25000
Nose Dia/Nut Dia 1.970
Balanced To 000 RPM at G2.5, 25
Flange Coolant DIN A/B
