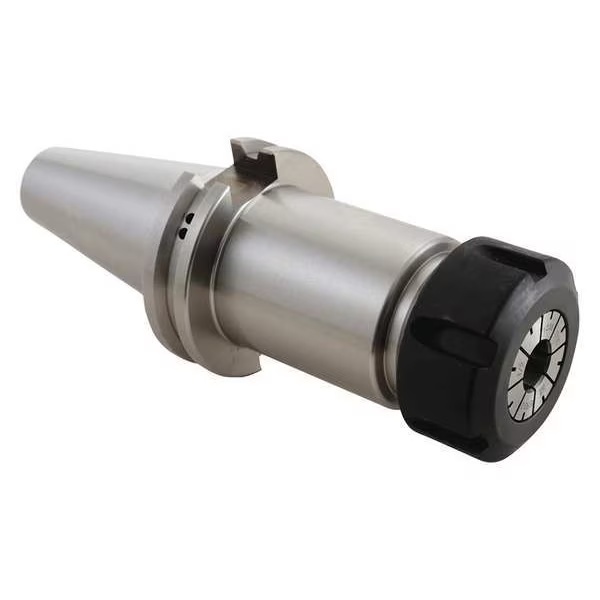

Picture of Techniks 22253F CAT40 Collet Chuck ER32 2.7600 Gauge Length

Techniks 22253F CAT40 Collet Chuck ER32 2.7600 Gauge Length

Part Number: TEC22253F ISO: 22253F

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419601
Vendor: Sussex Tool and Supply
$243.00
Techniks Coolflex Collet Chuck Offer Coolant Either Through The Spindle Or Flange (Din B). Remove Stop Screws For Din B. Balanced To 25,000 Rpm At G2.5 With T.I.R. Of 0.0001". Techniks Certified For Accuracy And Balance And Comes With A Lab Report. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 40
Overall Length 5.4470 138.35MM
Tool Dia 2.5000 63.50MM - 2-1/2
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER32
Output Type ER
Output 32
CNC Type Tool Collet Chuck
CNC Conection CAT40
CNC Out Put ER32
Gauge Length 2.7600
Max RPM 25000
Nose Dia/Nut Dia 1.970
Balanced To 000 RPM at G2.5, 25
Flange Coolant DIN A/B
