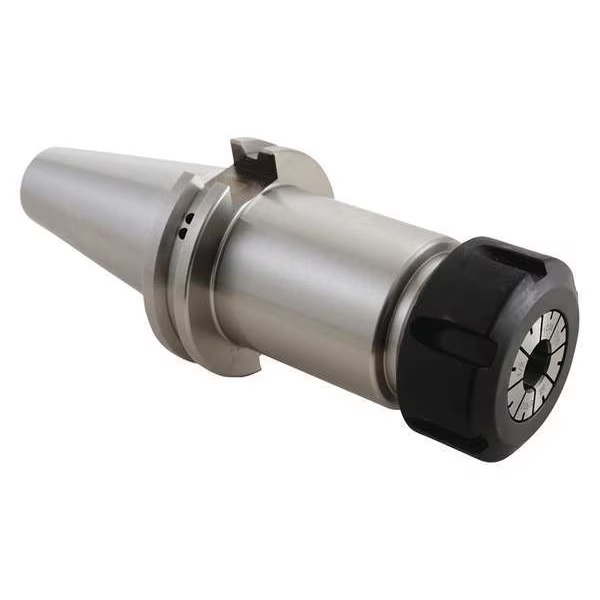

Picture of Techniks 22251F CAT40 Collet Chuck ER25 8.0000 Gauge Length

Techniks 22251F CAT40 Collet Chuck ER25 8.0000 Gauge Length

Part Number: TEC22251F ISO: 22251F
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1419599
Vendor: Sussex Tool and Supply
$211.31

Description

Techniks Coolflex Collet Chuck Offer Coolant Either Through The Spindle Or Flange (Din B). Remove Stop Screws For Din B. Balanced To 25,000 Rpm At G2.5 With T.I.R. Of 0.0001". Techniks Certified For Accuracy And Balance And Comes With A Lab Report. Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Type Of Tool Collet Chuck
Output Type ER
CNC Type Tool Collet Chuck
Flange Coolant DIN A/B
Dimensions & Sizing
Overall Length 10.6870 271.44MM
Tool Dia 2.5000 63.50MM - 2-1/2
Gauge Length 8.0000
Nose Dia/Nut Dia 1.650
Performance & Capacity
Output 25
Max RPM 25000
Balanced To 000 RPM at G2.5, 25
Materials & Finish
Tool Material Steel
Compatibility & Fit
CNC Connection CAT40
