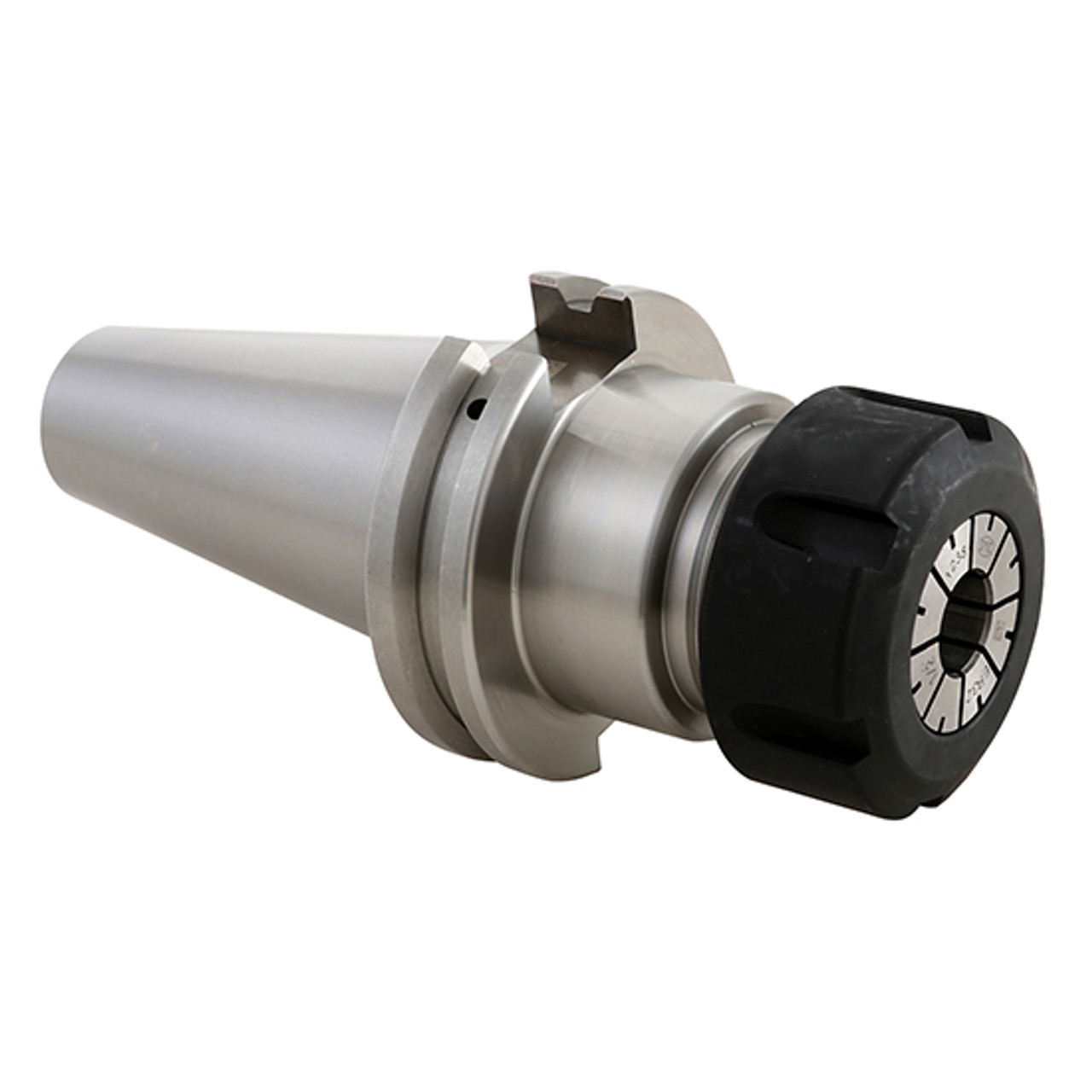

Picture of Techniks 22239-10 CAT40 Collet Chuck ER20 10.0000 Gauge Length

Techniks 22239-10 CAT40 Collet Chuck ER20 10.0000 Gauge Length

Part Number: TEC22239-10 ISO: 22239-10
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1419587
Vendor: Sussex Tool and Supply
$207.80

Description

Techniks Techniks Collet Chucks Are Balanced To 25,000 Rpm At G2.5 Tolerance. Individually Lab Tested For Accuracy And Balance. Individual Performance Report. Techniks Holders Achieve 0.0001" Or Less T.I.R. As Measured From The Taper To The Collet Pocket. Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Type Of Tool Collet Chuck
Output Type ER
CNC Type Tool Collet Chuck
Dimensions & Sizing
Overall Length 12.6875 322.26MM
Tool Dia 2.5000 63.50MM - 2-1/2
Gauge Length 10.0000
Nose Dia/Nut Dia 1.340
Performance & Capacity
Output 20
Max RPM 25000
Balanced To 000 RPM at G2.5, 25
Materials & Finish
Tool Material Steel
Compatibility & Fit
CNC Connection CAT40
