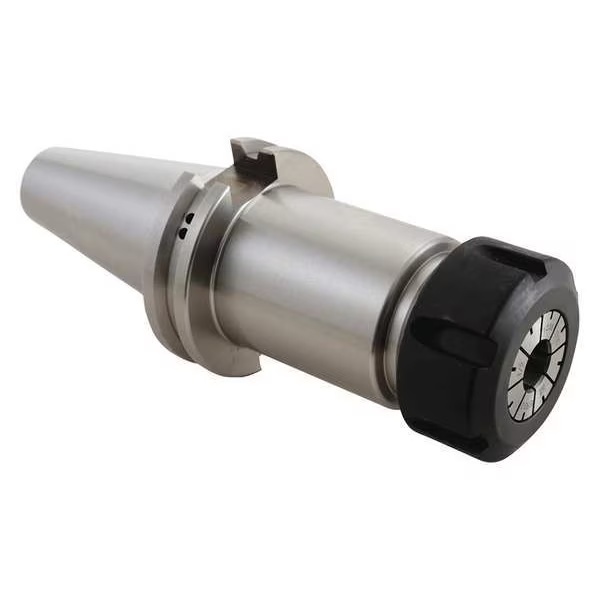

Picture of Techniks 22235F CAT40 Collet Chuck ER20 2.7600 Gauge Length

Techniks 22235F CAT40 Collet Chuck ER20 2.7600 Gauge Length

Part Number: TEC22235F ISO: 22235F

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419583
Vendor: Sussex Tool and Supply
$226.00
Techniks Coolflex Collet Chuck Offer Coolant Either Through The Spindle Or Flange (Din B). Remove Stop Screws For Din B. Balanced To 25,000 Rpm At G2.5 With T.I.R. Of 0.0001". Techniks Certified For Accuracy And Balance And Comes With A Lab Report. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 40
Overall Length 5.4470 138.35MM
Tool Dia 2.5000 63.50MM - 2-1/2
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER20
Output Type ER
Output 20
CNC Type Tool Collet Chuck
CNC Conection CAT40
CNC Out Put ER20
Gauge Length 2.7600
Max RPM 25000
Nose Dia/Nut Dia 1.340
Balanced To 000 RPM at G2.5, 25
Flange Coolant DIN A/B
