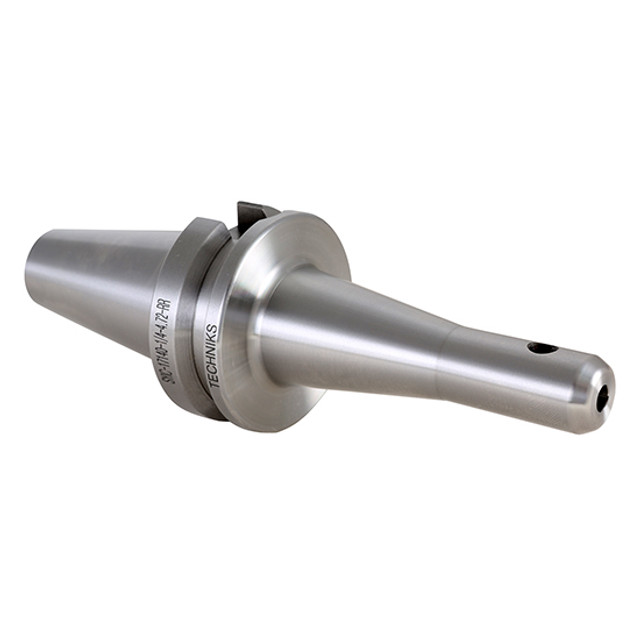

Picture of Techniks 17140-1/8-5.0-RR BT40 End Mill 0.1250 3.18mm - 1/8 5.0000 Gauge Length

Techniks 17140-1/8-5.0-RR BT40 End Mill 0.1250 3.18mm - 1/8 5.0000 Gauge Length

Part Number: TEC17140-1/8-5.0-RR ISO: 17140-1/8-5.0-RR

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419405
Vendor: Sussex Tool and Supply
$185.00
Techniks Rigid Reach Holders Have An Extra Thick Neck For Improved Rigidity And Cutting. The I.D. Hole Is H5 Standard. Rigid Reach Holders Are Balanced To 10,000 Rpm And The Taper Is Ground To At3. Lab Certified And Comes With A Performance Report. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 40
Overall Length 7.5700 192.27MM
Type Of Tool End Mill Holder
Insert/Tool TOOL
Part Side WELDON0.1250
Output Type Weldon
Output 0.1250 3.18MM - 1/8
CNC Type Tool End Mill
CNC Conection BT40
CNC Out Put WELDON0.1250
Gauge Length 5.0000
Max RPM 15000
Nose Dia/Nut Dia 0.780
Balanced To 000 RPM at G6.3, 15
