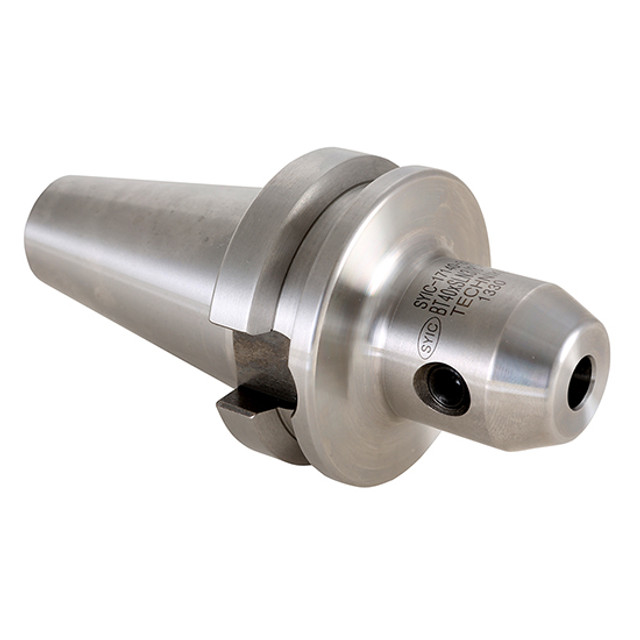

Picture of Techniks 17140-1/4F BT40 End Mill 0.2500 6.35mm - 1/4 2.5000 Gauge Length

Techniks 17140-1/4F BT40 End Mill 0.2500 6.35mm - 1/4 2.5000 Gauge Length

Part Number: TEC17140-1/4F ISO: 17140-1/4F

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419402
Vendor: Sussex Tool and Supply
$228.00
Techniks Techniks Coolflex End Mill Holders Offer Coolant Capability Either Through Spindle Or The Flange(Din B). Techniks End Mills Offer An Industry Leading H5 Bore Tolerance To Increase Tool Life And Are Individually Tested In A Lab To Ensure Quality. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 40
Overall Length 5.0700 128.78MM
Type Of Tool End Mill Holder
Insert/Tool TOOL
Part Side WELDON0.2500
Output Type Weldon
Output 0.2500 6.35MM - 1/4
CNC Type Tool End Mill
CNC Conection BT40
CNC Out Put WELDON0.2500
Gauge Length 2.5000
Max RPM 15000
Nose Dia/Nut Dia 0.780
Balanced To 000 RPM at G6.3, 15
