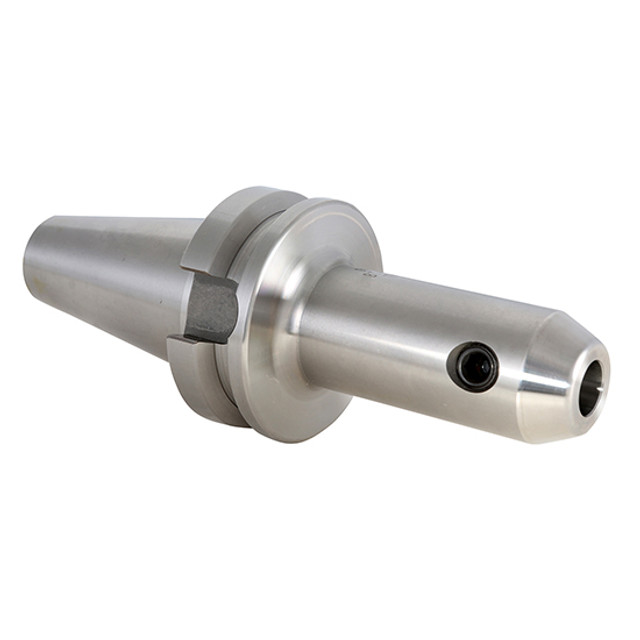

Picture of Techniks 17140-1/4B BT40 End Mill 0.2500 6.35mm - 1/4 2.5000 Gauge Length

Techniks 17140-1/4B BT40 End Mill 0.2500 6.35mm - 1/4 2.5000 Gauge Length

Part Number: TEC17140-1/4B ISO: 17140-1/4B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419401
Vendor: Sussex Tool and Supply
$189.00
Techniks Techniks End Mill Holders Are Machined To An H5 I.D. Hole Tolerance. Extended Length End Mills Are Balanced To 10,000 Rpm To Save Spindle Bearing Life. Taper Is Ground To At3 Standard. Lab Certified With An Individual Performance Report. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 40
Overall Length 5.0700 128.78MM
Type Of Tool End Mill Holder
Insert/Tool TOOL
Part Side WELDON0.2500
Output Type Weldon
Output 0.2500 6.35MM - 1/4
CNC Type Tool End Mill
CNC Conection BT40
CNC Out Put WELDON0.2500
Gauge Length 2.5000
Max RPM 15000
Nose Dia/Nut Dia 0.780
Balanced To 000 RPM at G6.3, 15
