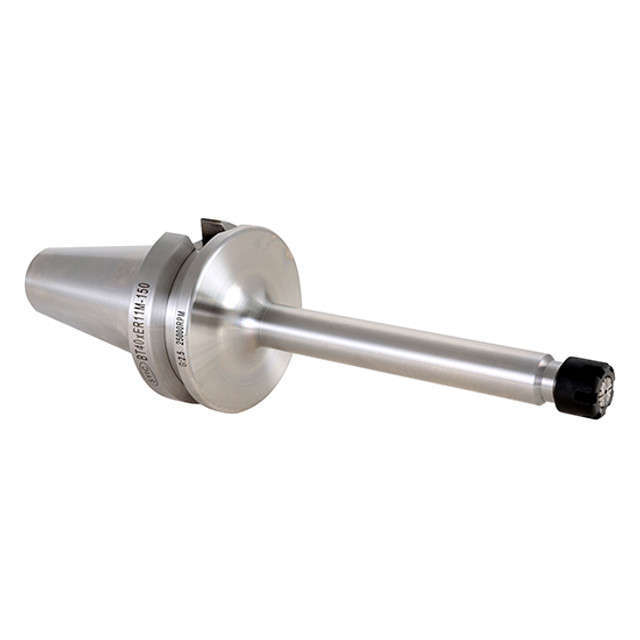

Picture of Techniks 16328-200 BT40 Collet Chuck ER16 7.8700 Gauge Length

Techniks 16328-200 BT40 Collet Chuck ER16 7.8700 Gauge Length

Part Number: TEC16328-200 ISO: 16328-200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419351
Vendor: Sussex Tool and Supply
$414.00
Techniks Techniks Collet Chucks Are Balanced To 25,000 Rpm At G2.5 Tolerance. Lab Tested For Accuracy And Balance And Come With Their Individual Performance Report. Techniks Holders Achieve 0.0001" Or Less T.I.R. From The Taper To The Collet Pocket. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 40
Overall Length 10.4500 265.43MM
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER16
Output Type ER
Output 16
CNC Type Tool Collet Chuck
CNC Conection BT40
CNC Out Put ER16
Coolant Type Through Tool
Gauge Length 7.8700
Max RPM 25000
Nose Dia/Nut Dia 0.870
Balanced To 000 RPM at G2.5, 25
