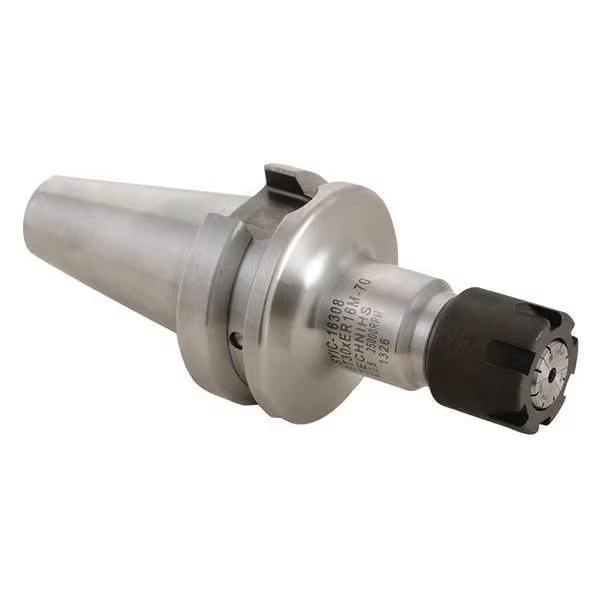

Picture of Techniks 16318 BT30 Collet Chuck ER20 5.9100 Gauge Length

Techniks 16318 BT30 Collet Chuck ER20 5.9100 Gauge Length

Part Number: TEC16318 ISO: 16318

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419346
Vendor: Sussex Tool and Supply
$194.00
Techniks Techniks Collet Chucks Are Balanced To 25,000 Rpm At G2.5 Tolerance. Lab Tested For Accuracy And Balance And Come With Their Individual Performance Report. Techniks Holders Achieve 0.0001" Or Less T.I.R. From The Taper To The Collet Pocket. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 30
Overall Length 7.8100 198.37MM
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER20
Output Type ER
Output 20
CNC Type Tool Collet Chuck
CNC Conection BT30
CNC Out Put ER20
Coolant Type Through Tool
Gauge Length 5.9100
Max RPM 25000
Nose Dia/Nut Dia 1.100
Balanced To 000 RPM at G2.5, 25
