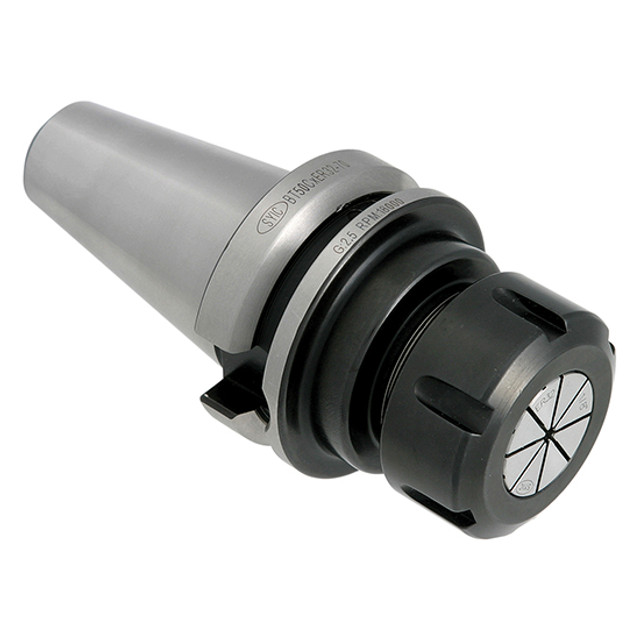

Picture of Techniks 16285 BT50 Collet Chuck ER40 3.1500 Gauge Length

Techniks 16285 BT50 Collet Chuck ER40 3.1500 Gauge Length

Part Number: TEC16285 ISO: 16285

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419333
Vendor: Sussex Tool and Supply
$276.00
Techniks Techniks Chucks Are Balanced To 25,000 Rpm At G2.5 Tolerance. Lab Tested For Accuracy And Balance And Come With Their Own Performance Report. Techniks Holders Achieve 0.0001" Or Less T.I.R. As Measured From The Taper To The Collet Pocket. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 50
Overall Length 7.1600 181.86MM
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER40
Output Type ER
Output 40
CNC Type Tool Collet Chuck
CNC Conection BT50
CNC Out Put ER40
Coolant Type Through Tool
Gauge Length 3.1500
Max RPM 25000
Nose Dia/Nut Dia 2.480
Balanced To 000 RPM at G2.5, 25
