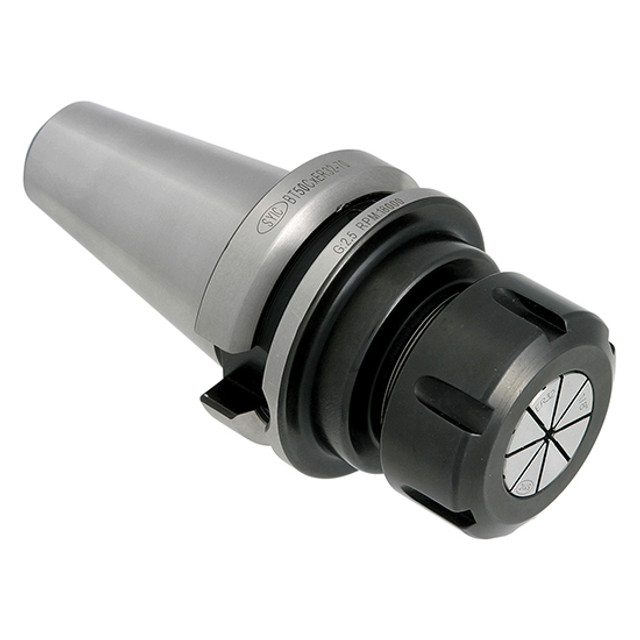

Picture of Techniks 16284 BT50 Collet Chuck ER32 5.9100 Gauge Length

Techniks 16284 BT50 Collet Chuck ER32 5.9100 Gauge Length

Part Number: TEC16284 ISO: 16284
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1419332
Vendor: Sussex Tool and Supply
$207.80

Description

Techniks Techniks Chucks Are Balanced To 25,000 Rpm At G2.5 Tolerance. Lab Tested For Accuracy And Balance And Come With Their Own Performance Report. Techniks Holders Achieve 0.0001" Or Less T.I.R. As Measured From The Taper To The Collet Pocket. Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Output Type ER
CNC Type Tool Collet Chuck
Coolant Type Through Tool
Dimensions & Sizing
Overall Length 9.9200 251.97MM
Gauge Length 5.9100
Nose Dia/Nut Dia 1.970
Performance & Capacity
Output 32
Max RPM 25000
Balanced To 000 RPM at G2.5, 25
Materials & Finish
Tool Material Steel
Compatibility & Fit
CNC Connection BT50
