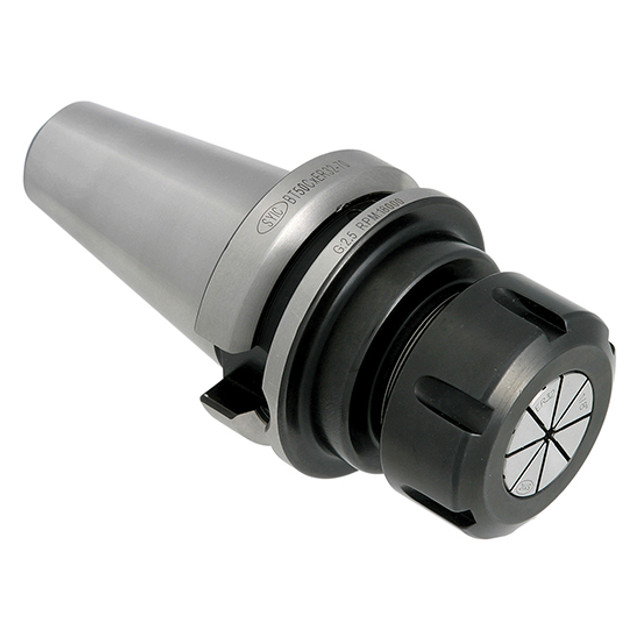

Picture of Techniks 16272 BT50 Collet Chuck ER20 7.8700 Gauge Length

Techniks 16272 BT50 Collet Chuck ER20 7.8700 Gauge Length

Part Number: TEC16272 ISO: 16272

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419326
Vendor: Sussex Tool and Supply
$312.00
Techniks Techniks Chucks Are Balanced To 25,000 Rpm At G2.5 Tolerance. Lab Tested For Accuracy And Balance And Come With Their Own Performance Report. Techniks Holders Achieve 0.0001" Or Less T.I.R. As Measured From The Taper To The Collet Pocket. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 50
Overall Length 11.8900 302.01MM
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER20
Output Type ER
Output 20
CNC Type Tool Collet Chuck
CNC Conection BT50
CNC Out Put ER20
Coolant Type Through Tool
Gauge Length 7.8700
Max RPM 25000
Nose Dia/Nut Dia 1.340
Balanced To 000 RPM at G2.5, 25
