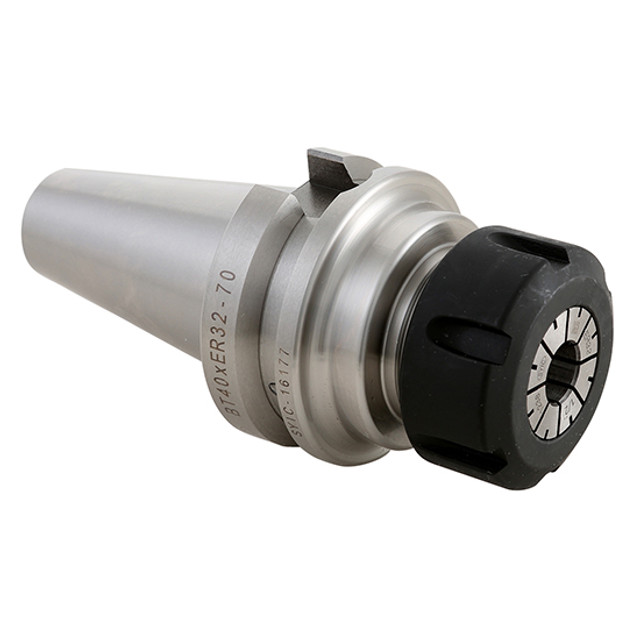

Picture of Techniks 16181F BT40 Collet Chuck ER32 5.9100 Gauge Length

Techniks 16181F BT40 Collet Chuck ER32 5.9100 Gauge Length

Part Number: TEC16181F ISO: 16181F

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419313
Vendor: Sussex Tool and Supply
$218.00
Techniks Coolflex Collet Chuck Offer Coolant Either Through The Spindle Or Flange (Din B). Remove Stop Screws For Din B. Balanced To 25,000 Rpm At G2.5 With T.I.R. Of 0.0001". Techniks Certified For Accuracy And Balance And Comes With A Lab Report. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 40
Overall Length 8.4800 215.39MM
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER32
Output Type ER
Output 32
CNC Type Tool Collet Chuck
CNC Conection BT40
CNC Out Put ER32
Coolant Type Through Tool
Gauge Length 5.9100
Max RPM 25000
Nose Dia/Nut Dia 1.970
Balanced To 000 RPM at G2.5, 25
