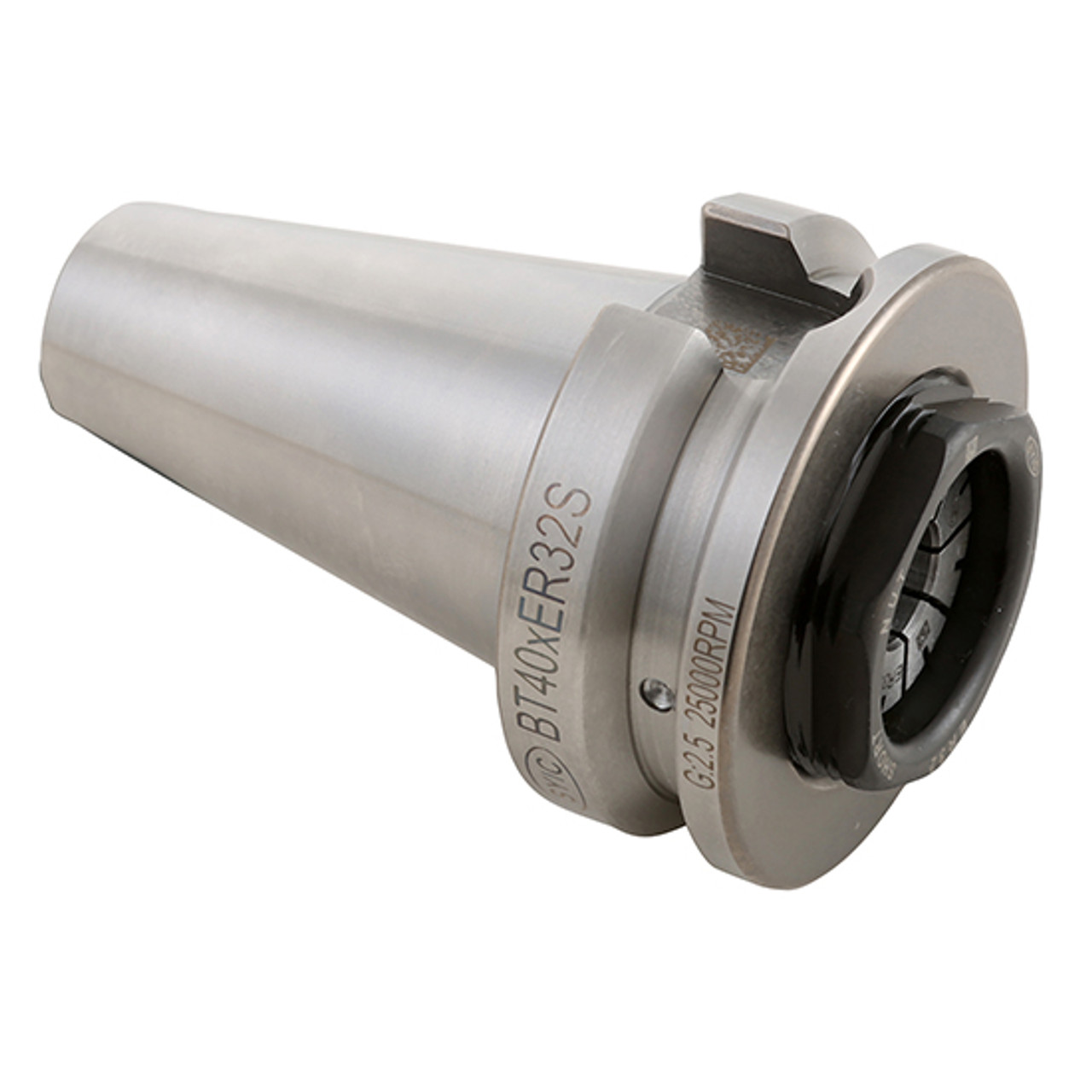

Picture of Techniks 16177S BT40 Collet Chuck ER32 1.4200 Gauge Length

Techniks 16177S BT40 Collet Chuck ER32 1.4200 Gauge Length

Part Number: TEC16177S ISO: 16177S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419311
Vendor: Sussex Tool and Supply
$167.00
Techniks Techniks Collet Chucks Are Balanced To 25,000 Rpm At G2.5 Tolerance. Superrigid Has The Best T.I.R. And Z Axis. Lab Tested For Accuracy And Balance. Superrigid Chucks Are Perfect For High Torque Or High Speed Machining With Minimal Projection. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 40
Overall Length 3.9900 101.34MM
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER32
Output Type ER
Output 32
CNC Type Tool Collet Chuck
CNC Conection BT40
CNC Out Put ER32
Coolant Type Through Tool
Gauge Length 1.4200
Max RPM 25000
Nose Dia/Nut Dia 1.970
Balanced To 000 RPM at G2.5, 25
