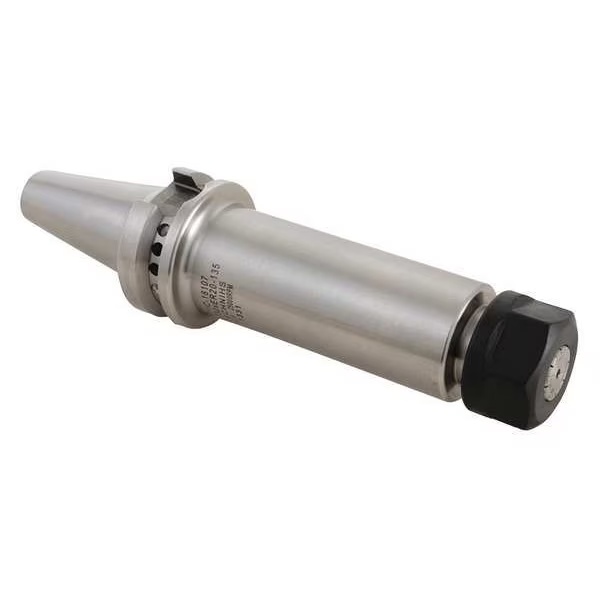

Picture of Techniks 16104 BT30 Collet Chuck ER16 3.9400 Gauge Length

Techniks 16104 BT30 Collet Chuck ER16 3.9400 Gauge Length

Part Number: TEC16104 ISO: 16104

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419271
Vendor: Sussex Tool and Supply
$166.00
Techniks Techniks Chucks Are Balanced To 25,000 Rpm At G2.5 Tolerance. Lab Tested For Accuracy And Balance And Come With Their Own Performance Report. Techniks Holders Achieve 0.0001" Or Less T.I.R. As Measured From The Taper To The Collet Pocket. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 30
Overall Length 5.8400 148.34MM
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER16
Output Type ER
Output 16
CNC Type Tool Collet Chuck
CNC Conection BT30
CNC Out Put ER16
Coolant Type Through Tool
Gauge Length 3.9400
Max RPM 25000
Nose Dia/Nut Dia 1.080
Balanced To 000 RPM at G2.5, 25
