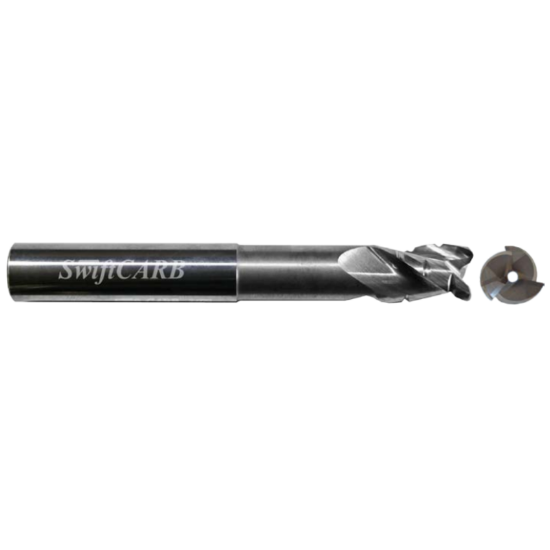

SWIFTCARB AV10003E6TITTC00 DIA 1 SH 1.00 LOC 1.50 OAL10.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius0.0600 1.52MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAV10003E6TITTC00
Delivery date: 3-5 days
$593.28
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 Corner Radius
Package Size 1
Material # Material#20, Material#25, Material#42
Additional Key Information 1 End Mill
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Additional Key Information 3 Standard Flute
Sold by Pieces 1
Additional Key Information 4 Variable Helix
Shipping State Washington
Performance Rating High Performance
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side CYLINDRICAL1.0000
Length Of Cut 1.5000 38.10MM
Neck Length 7.5000 190.50MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Helix Angle Variable
Corner Radius 0.0600 1.52MM
Dimension Description 1.000 x 1.000 x 1.500 x 10.000
Machine Side Connection Type Cylindrical
Overall Len 10.0000 254.00MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Cutter Dia 1.0000 25.40MM
Length Type Standard / With Neck
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
