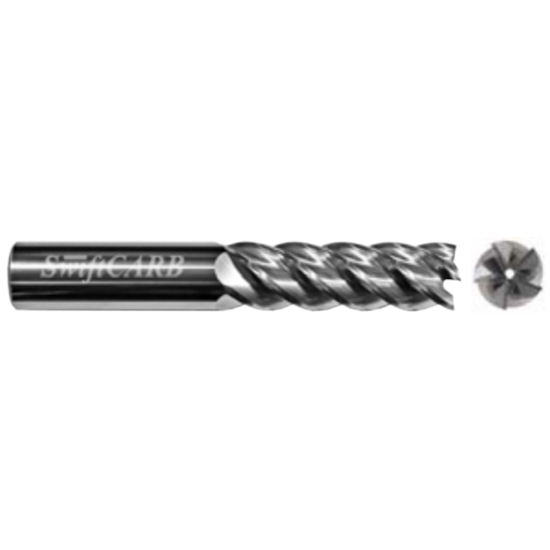

SWIFTCARB AF10005N800PRN00 DIA 1 SH 1.00 LOC 5.2500 OAL8.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius0.1560 3.96MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAF10005N800PRN00
Delivery date: 3-5 days
$652.28
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#25, Material#42, Material#20
Additional Key Information 4 Variable Helix
Additional Key Information 2 Corner Radius
Package Size 1
Application Copy Milling, Face Milling, Profile Milling, Side Milling, Slot Milling
Performance Rating High Performance
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Shipping State Washington
Uncategorized
Made In USA Yes
Dimensional Specifications
Flutes/Inserts 5
Machine Side CYLINDRICAL1.0000
Cutter Dia 1.0000 25.40MM
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Overall Len 8.0000 203.20MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Dimension Description 1.000 x 1.000 x 5.250 x 8.000
Length Of Cut 5.2500 133.35MM
Helix Angle Variable
Corner Radius 0.1560 3.96MM
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
