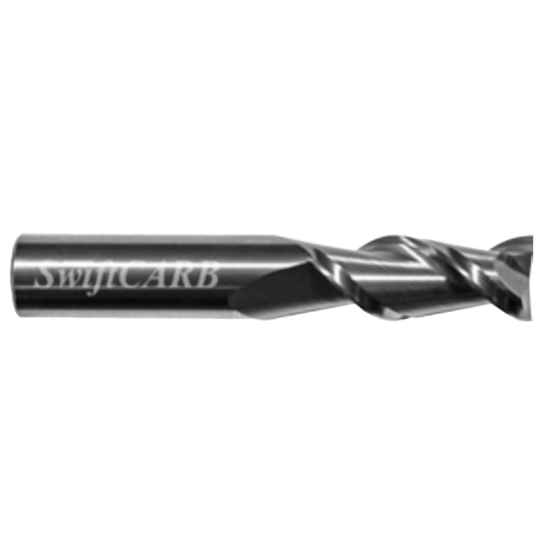

SWIFTCARB AC12502NU00RR600 DIA 1-1/4 SH 1.2500 LOC 5.50 OAL9.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius0.0300 0.76MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAC12502NU00RR600
Delivery date: 3-5 days
$694.49
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#20, Material#42, Material#25
Additional Key Information 1 End Mill
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Additional Key Information 2 Corner Radius
Package Size 1
Additional Key Information 3 Standard Flute
Performance Rating High Performance
Additional Key Information 4 Variable Helix
Shipping State Washington
Sold by Pieces 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side CYLINDRICAL1.2500
Length Of Cut 5.5000 139.70MM
Corner Radius 0.0300 0.76MM
Overall Len 9.0000 228.60MM
Single/Double End Single End
End Of Tool Shape Corner Radius
Helix Angle Variable
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Length Type Standard
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Style Carbide Bull Nose Finisher
Dimension Description 1.250 x 1.250 x 5.500 x 9.000
Machine Side Connection Size 1.2500 31.75MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
