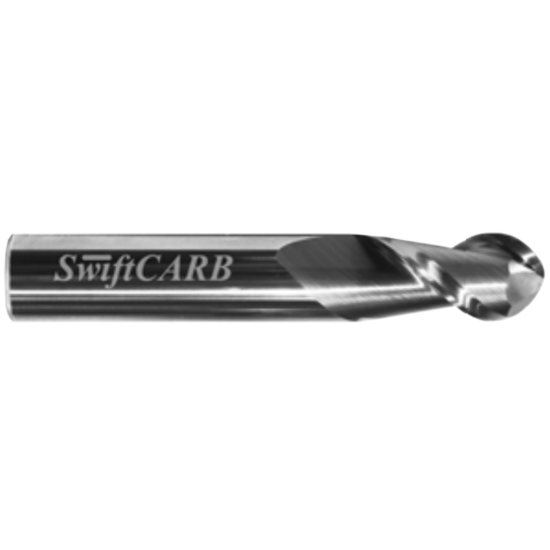

SWIFTCARB AC12502MM00NB000 DIA 1-1/4 SH 1.2500 LOC 5.00 OAL7.50 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Ball NoseBall

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAC12502MM00NB000
Delivery date: 3-5 days
$737.20
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#25, Material#42, Material#20
Additional Key Information 4 Variable Helix
Application Ball Milling, Profile Milling, Copy Milling, Side Milling, Ball Slot Milling
Additional Key Information 2 Ball Nose
Package Size 1
Sold by Pieces 1
Performance Rating High Performance
Shipping State Washington
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Uncategorized
Made In USA Yes
Dimensional Specifications
End Of Tool Shape Ball Nose
Dimension Description 1.250 x 1.250 x 5.000 x 7.500
Flutes/Inserts 2
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 1.2500 31.75MM - 1-1/4
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 5.0000 127.00MM
Inch/Metric Inch
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Machine Side CYLINDRICAL1.2500
Helix Angle Variable
Machine Side Connection Size 1.2500 31.75MM
Overall Len 7.5000 190.50MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
