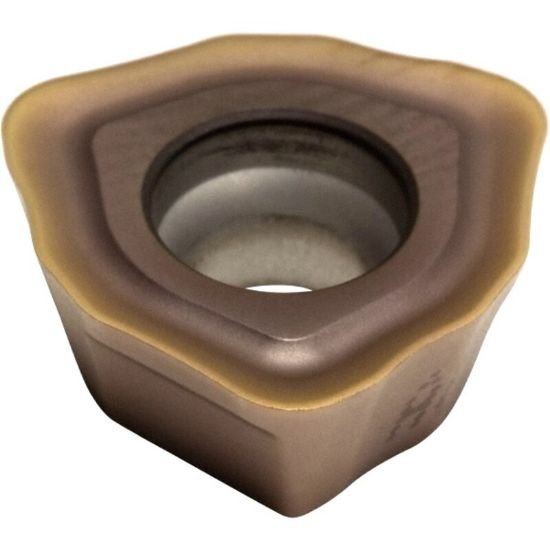

Picture of Sumitomo WDMT0603ZDTR-H Grade ACP200 Milling Insert Trigon Carbide

Sumitomo WDMT0603ZDTR-H Grade ACP200 Milling Insert Trigon Carbide

Part Number: SUM14HA627

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SUMITOMO
SKU: 1000558
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10

Sumitomo trigon milling insert with Super ZX Coat coating. Grade ACP200. Made in Usa: No. Shipping State: ILLINOIS.

Key Details

Materials & Finish

  • Coating: Super ZX Coat
  • Grade: ACP200

Grades & Coatings

  • Alternate Description: SUMITOMO 14HA627 Trigon Insert PositiveSuper ZX Coat WDMT0603ZDTR-H Grade ACP200 WDMT0603ZDTR-H Grade ACP200

Other Details

  • Brand: SUMITOMO
  • Shipping State: ILLINOIS
  • Made In Usa: No

Technical Overview

What It Does

Milling insert performs cutting functions in machining operations. It is designed for use in milling tools with trigon geometry. Functions under Grade ACP200 conditions.

Composition

Carbide body with Super ZX Coat coating. Constructed from SUMITOMO grade ACP200 material. Trigon shape ensures precise fit and stability.

Typical Uses

Used in milling applications with trigon inserts. Fits WDMT0603ZDTR-H tooling systems. Operates under ACP200 grade specifications.

Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Insert
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Coating Super ZX Coat
Insert Or Tool Insert
Insert Application Roughing
Corner Radius 0.0590 1.50MM
Insert Style WD
Insert Shape Or Cutter Pocket Shape Other
Insert Type Positive
Insert Size (IC) 60
Grade ACP200
Insert Fits Trigon
