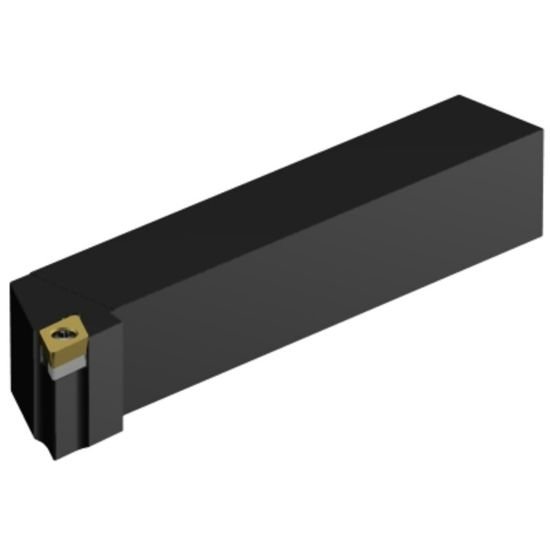

Picture of Sandvik SDJCR 16 3D, CoroTurn 107 Shank Tool for Turning, Right Hand, 1 x 1" Shank Stick Tool

Sandvik SDJCR 16 3D, CoroTurn 107 Shank Tool for Turning, Right Hand, 1 x 1" Shank Stick Tool

Part Number: SAN5749522 ISO: SDJCR 16 3D ANSI:SDJCR 16 3D
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1055389

Description

SANDVIK 5749522 55.0 ° Stick Tool 1.0000 Positive
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Hand Right Hand
Inter/Extern External
Coolant Type External
Dimensions & Sizing
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 11 "32"
Tool Over Hang 0.9490
Tool Width 1.0000
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 27.0° Clearance Angle
Clearance Angle 27.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
