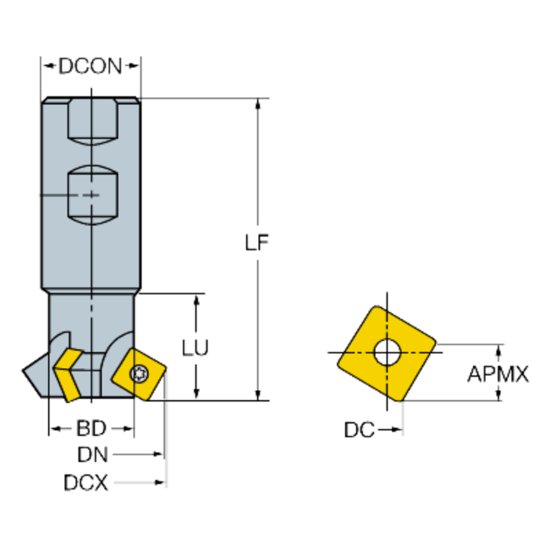

Picture of Sandvik RA215.64-32M32-4512, U-Max Chamfer Milling Cutter, 1.280" Cutting Diameter 45.0°, Chamfer Mill, Back Chamfer

Sandvik RA215.64-32M32-4512, U-Max Chamfer Milling Cutter, 1.280" Cutting Diameter 45.0°, Chamfer Mill, Back Chamfer

Part Number: SAN5740215 ISO: RA215.64-32M32-4512 ANSI:RA215.64-32M32-4512
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1014233
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

SANDVIK 5740215 Square 45.0°, Chamfer Mill, Back Chamfer End Mill Weldon 1.2500 Positive 1.2800 32.51MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Chamfer Mill, Back Chamfer
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style RA
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Coolant Type External
Dimensions & Sizing
Overall Length 4.1400 105.16MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Dia 1.2800 32.51MM
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Depth Of Cut Max 0.3100
Materials & Finish
Tool Material Steel
