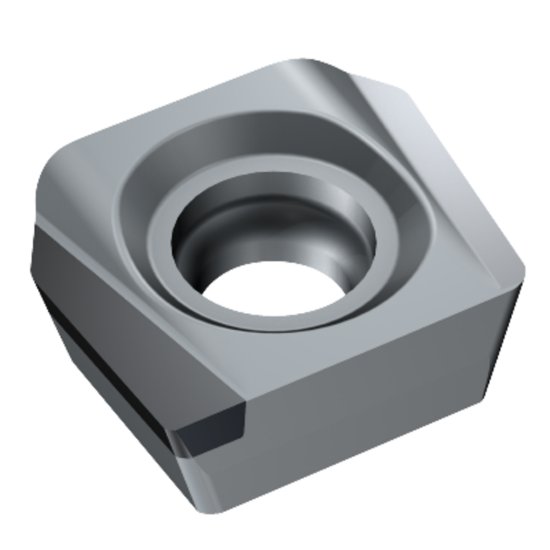

Picture of Sandvik R590-1105H-ZC2-KL CB50 CBN Insert; 90 degree shoulder Milling

Sandvik R590-1105H-ZC2-KL CB50 CBN Insert; 90 degree shoulder Milling

Part Number: SAN5747645 ISO: R590-1105H-ZC2-KL CB50 ANSI:R590-1105H-ZC2-KL CB50
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1190667
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

SANDVIK 5747645 Parallelogram Insert Positive Uncoated Grade for finishing on hard cast iron.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Finishing
Insert Style R590
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Hand Right Hand
Geometry & Angles
Corner Radius 0.0160 0.41MM
Performance & Capacity
Cut Rating Gray Iron, Ductile Iron
Depth Of Cut Max 0.0472
Materials & Finish
Cutting Edge Mat CBN
Grade CB50
Compatibility & Fit
Insert Fits Parallelogram
