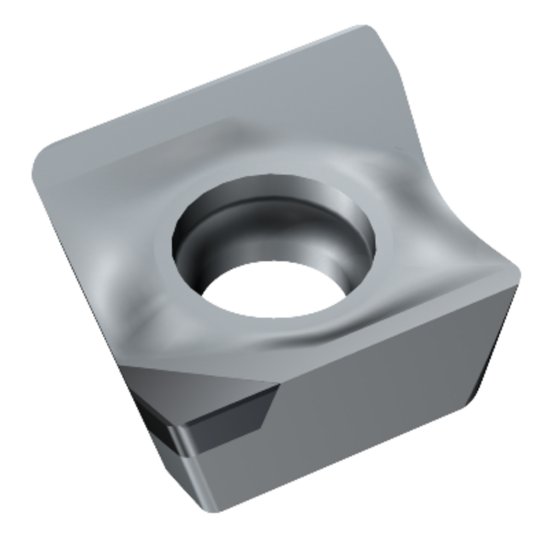

Picture of SANDVIK R590-1105H-PS2-NL CD10 PCD Insert; 90 degree shoulder Milling

SANDVIK R590-1105H-PS2-NL CD10 PCD Insert; 90 degree shoulder Milling

ANSI: R590-1105H-PS2-NL CD10

ISO: R590-1105H-PS2-NL CD10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5747593
Delivery date: 3-5 days
$151.41
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Details

R590-1105H-PS2-NL CD10 Sandvik CoroMill® Century, PCD Insert for Milling, Uncoated

Grade and Coating Description

PVD-grade recommended for stable conditions when high metal removal is needed in medium to rough applications.

Products specifications
Attribute name Attribute value
General Product Information
Grade CD10
Material # Material#16, Material#20, Material#10
Additional Key Information 2 Parallelogram
Shipping State Illinois
Sold by Pieces 10
Package Size 10
Insert/Tool Insert
Additional Key Information 1 Insert
Application Milling Insert
Insert Application Finishing
Insert Type Positive
Uncategorized
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.0787
Cut Rating Aluminum, Gray Iron, High Temp
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style R590
Cutting Edge Mat PCD
