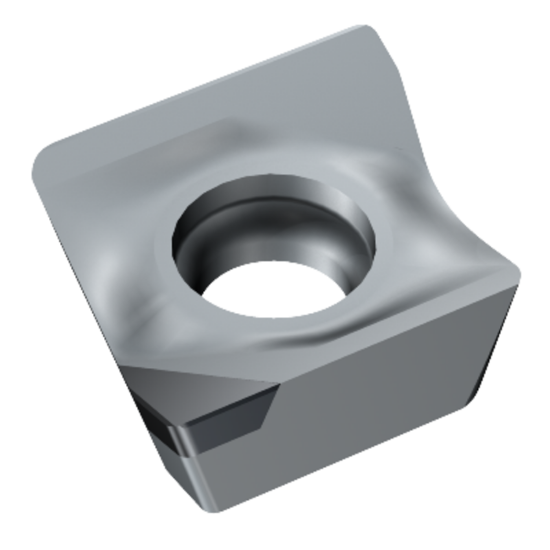

Picture of SANDVIK R590-1105H-PR2-NL CD10 PCD Insert; 90 degree shoulder Milling

SANDVIK R590-1105H-PR2-NL CD10 PCD Insert; 90 degree shoulder Milling

ANSI: R590-1105H-PR2-NL CD10

ISO: R590-1105H-PR2-NL CD10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5747706
Delivery date: 3-5 days
$151.41
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Details

R590-1105H-PR2-NL CD10 Sandvik CoroMill® Century, PCD Insert for Milling, Uncoated

Grade and Coating Description

PVD-grade recommended for stable conditions when high metal removal is needed in medium to rough applications.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing
Insert Type Positive
Sold by Pieces 10
Additional Key Information 2 Parallelogram
Material # Material#20, Material#10, Material#16
Insert/Tool Insert
Additional Key Information 1 Insert
Application Milling Insert
Shipping State Illinois
Grade CD10
Package Size 10
Uncategorized
Made In USA No
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Depth Of Cut Max 0.0787
Cut Rating Aluminum, Gray Iron, High Temp
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Neutral
Cutting Edge Mat PCD
Insert Style R590
