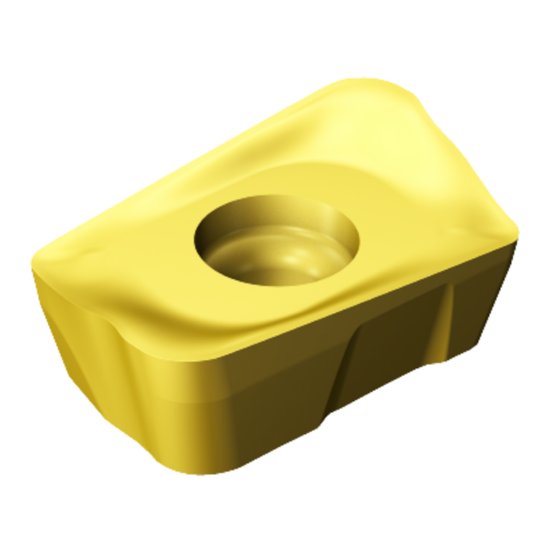

Picture of Sandvik R390-18 06 64H-ML 2040 CoroMill 390 Insert; 90 degree shoulder Milling

Sandvik R390-18 06 64H-ML 2040 CoroMill 390 Insert; 90 degree shoulder Milling

Part Number: SAN5746556 ISO: R390-18 06 64H-ML 2040 ANSI:R390-18 06 64H-ML 2040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1191555
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10
SANDVIK 5746556 Parallelogram Insert Positive TiCrN + Al2O3 + TiN CVD TiCrN+Al2O3+TiN Tough, medium-thick coated CVD grade designed for tough and demanding, medium to rough milling applications with poor stability in dry conditions. High feed rates, large diameters and radial engagements.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Stainless Steel, <40HRC Steel
Coating TiCrN + Al2O3 + TiN
Insert/Tool INSERT
Insert Application Finishing
Corner Radius 0.2520 6.40MM
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Grade 2040
Insert Type Positive
Insert Fits Parallelogram
Hand Neutral
ISO Space R390 18 06 64H ML 2040
Depth Of Cut Max 0.6299
