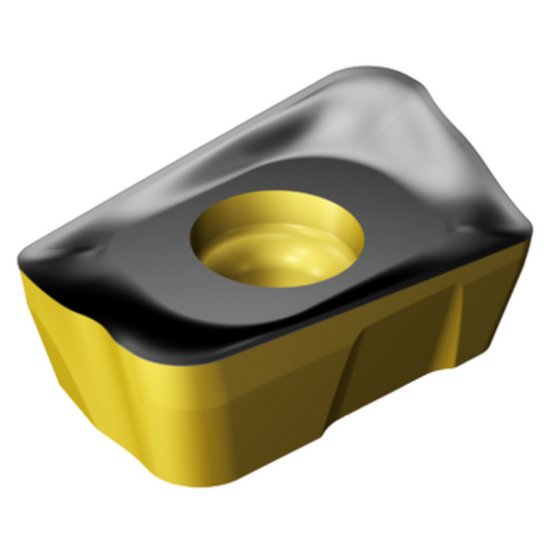

Picture of Sandvik R390-18 06 16M-Powder Metal 4230 CoroMill 390 Insert; 90 degree shoulder Milling

Sandvik R390-18 06 16M-Powder Metal 4230 CoroMill 390 Insert; 90 degree shoulder Milling

Part Number: SAN5745999 ISO: R390-18 06 16M-PM 4230 ANSI:R390-18 06 16M-PM 4230
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
SKU: 1190428

Description

SANDVIK 5745999 Parallelogram Insert Positive TiCN + Al2O3 + TiN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Medium
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Hand Right Hand
Insert Applications Medium
Geometry & Angles
Corner Radius 0.0620 1.57MM
Performance & Capacity
Cut Rating <40HRC Steel, Ductile Iron
Depth Of Cut Max 0.6299
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + Al2O3 + TiN
Grade 4230
Compatibility & Fit
Insert Fits Parallelogram
Standards & Identification
ISO Space R390 18 06 16M PM 4230
