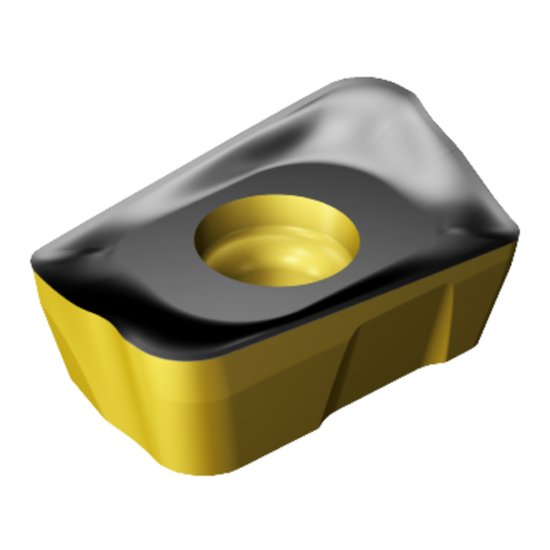

Picture of Sandvik R390-18 06 12M-Powder Metal 4330 CoroMill 390 Insert; 90 degree shoulder Milling

Sandvik R390-18 06 12M-Powder Metal 4330 CoroMill 390 Insert; 90 degree shoulder Milling

Part Number: SAN7564402 ISO: R390-18 06 12M-PM 4330 ANSI:R390-18 06 12M-PM 4330

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1191882
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10
SANDVIK 7564402 Parallelogram Insert Positive TiCN + Al2O3 + TiN CVD TiCN+Al2O3+TiN GREY IRON, DUCTILE IRON, STEELS.USED FOR GENERAL PURPOSE MACHINNG VERY TOUGH
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating <40HRC Steel, Ductile Iron
Coating TiCN + Al2O3 + TiN
Insert/Tool INSERT
Insert Application Medium
Corner Radius 0.0470 1.19MM
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Grade 4330
Insert Type Positive
Insert Fits Parallelogram
Hand Right Hand
ISO Space R390 18 06 12M PM 4330
Depth Of Cut Max 0.6299
