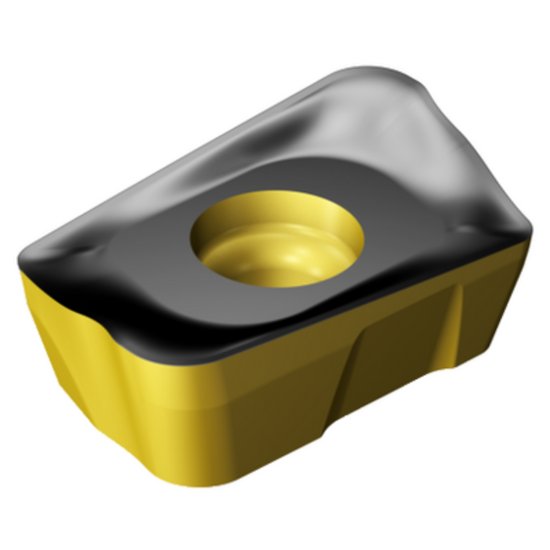

Picture of Sandvik R390-18 06 12M-Powder Metal 4230 CoroMill 390 Insert; 90 degree shoulder Milling

Sandvik R390-18 06 12M-Powder Metal 4230 CoroMill 390 Insert; 90 degree shoulder Milling

Part Number: SAN5746064 ISO: R390-18 06 12M-PM 4230 ANSI:R390-18 06 12M-PM 4230

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1190431
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10
SANDVIK 5746064 Parallelogram Insert Positive TiCN + Al2O3 + TiN CVD TiCN+Al2O3+TiN GREY IRON, DUCTILE IRON, STEELS.USED GENERAL PURPOSE
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating <40HRC Steel, Ductile Iron
Coating TiCN + Al2O3 + TiN
Insert/Tool INSERT
Insert Application Medium
Corner Radius 0.0470 1.19MM
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Grade 4230
Insert Type Positive
Insert Fits Parallelogram
Hand Right Hand
ISO Space R390 18 06 12M PM 4230
Depth Of Cut Max 0.6299
