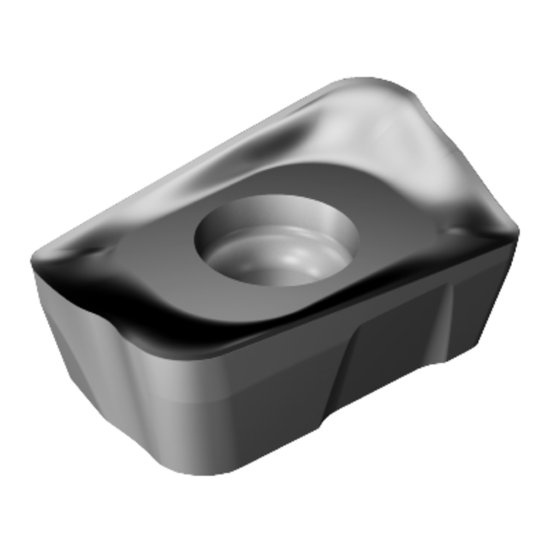

Picture of Sandvik R390-18 06 12M-PMR S30T CoroMill 390 Insert; 90 degree shoulder Milling

Sandvik R390-18 06 12M-PMR S30T CoroMill 390 Insert; 90 degree shoulder Milling

Part Number: SAN5853528 ISO: R390-18 06 12M-PMR S30T ANSI:R390-18 06 12M-PMR S30T

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1190969
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10
SANDVIK 5853528 Parallelogram Insert Positive TiAIN2 S30T has been developed with productive titanium milling in focus. It combines the properties of micro-grain carbide and a wear resistant PVD coating. This enables very sharp cutting edges that resist fatigue and micro-chipping and results in cutting edges that are preserved for longer times in cut at higher cutting speeds.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating High Temp
Coating TiAIN2
Insert/Tool INSERT
Cut Type Medium
Corner Radius 0.0470 1.19MM
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Grade S30T
Insert Type Positive
Insert Fits Parallelogram
Hand Right Hand
ISO Space R390 18 06 12M PMR S30T
Depth Of Cut Max 0.6693
