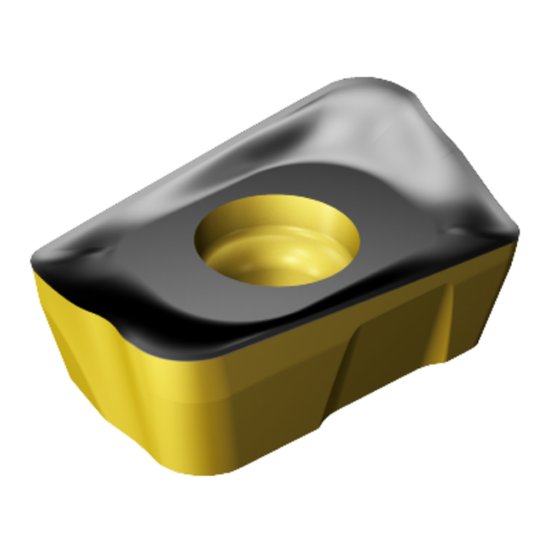

Picture of Sandvik R390-18 06 08M-Powder Metal 4330 CoroMill 390 Insert; 90 degree shoulder Milling

Sandvik R390-18 06 08M-Powder Metal 4330 CoroMill 390 Insert; 90 degree shoulder Milling

Part Number: SAN7564398 ISO: R390-18 06 08M-PM 4330 ANSI:R390-18 06 08M-PM 4330
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1191887
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

SANDVIK 7564398 Parallelogram Insert Positive TiCN + Al2O3 + TiN CVD TiCN+Al2O3+TiN GREY IRON, DUCTILE IRON, STEELS.USED FOR GENERAL PURPOSE MACHINNG VERY TOUGH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Medium
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Hand Neutral
Geometry & Angles
Corner Radius 0.0320 0.81MM
Performance & Capacity
Cut Rating <40HRC Steel, Ductile Iron
Depth Of Cut Max 0.6299
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + Al2O3 + TiN
Grade 4330
Compatibility & Fit
Insert Fits Parallelogram
Standards & Identification
ISO Space R390 18 06 08M PM 4330
