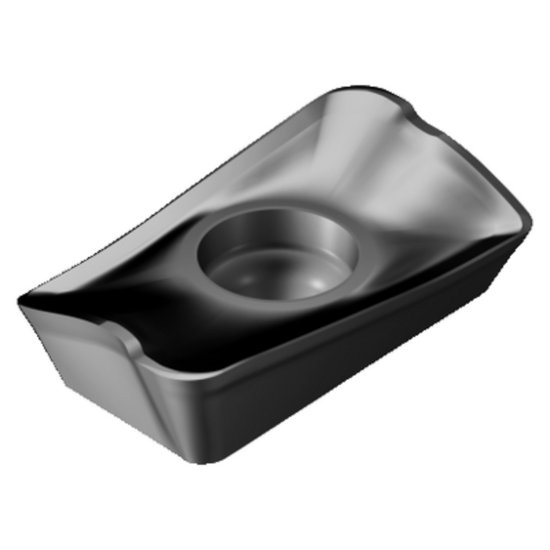

Picture of Sandvik R390-17 04 48E-Powder Metal 1010 CoroMill 390 Insert; 90 degree shoulder Milling

Sandvik R390-17 04 48E-Powder Metal 1010 CoroMill 390 Insert; 90 degree shoulder Milling

Part Number: SAN5745877 ISO: R390-17 04 48E-PM 1010 ANSI:R390-17 04 48E-PM 1010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1190548
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10
SANDVIK 5745877 Parallelogram Insert Positive TiAlN GC1010 is a PVD-coated grade for light roughing to finishing operations. With its exceptional resistance to plastic deformation, thermal cracking, and other types of wear, this grade can withstand long periods of time in cut and is suitable for machining hardened steel from 36 HRC and higher.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Gray Iron, <53HRC Steel
Coating TiAlN
Insert/Tool INSERT
Insert Application Medium
Corner Radius 0.1890 4.80MM
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Grade 1010
Insert Type Positive
Insert Fits Parallelogram
Hand Right Hand
ISO Space R390 17 04 48E PM 1010
Depth Of Cut Max 0.5906
