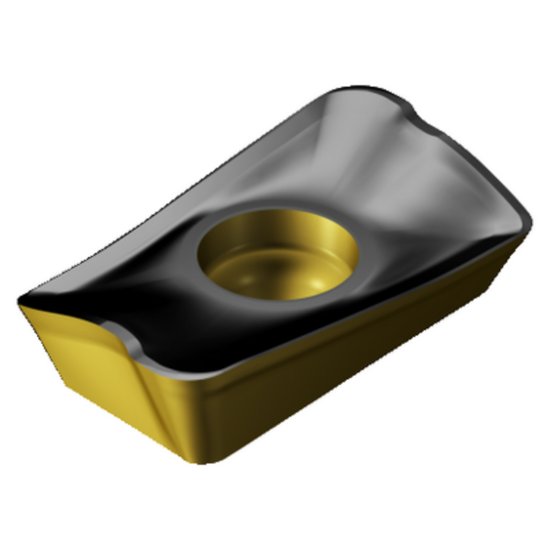

Picture of Sandvik R390-17 04 08M-PL 4240 CoroMill 390 Insert; 90 degree shoulder Milling

Sandvik R390-17 04 08M-PL 4240 CoroMill 390 Insert; 90 degree shoulder Milling

Part Number: SAN5746117 ISO: R390-17 04 08M-PL 4240 ANSI:R390-17 04 08M-PL 4240

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1191625
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10
SANDVIK 5746117 Parallelogram Insert Positive TiCN + Al2O3 + TiN CVD TiCN+Al2O3+TiN GREY IRON, DUCTILE IRON, STEELS.USED GENERAL PURPOSE
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating <40HRC Steel, Ductile Iron
Coating TiCN + Al2O3 + TiN
Insert/Tool INSERT
Insert Application Finishing
Corner Radius 0.0320 0.81MM
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Grade 4240
Insert Type Positive
Insert Fits Parallelogram
Hand Right Hand
ISO Space R390 17 04 08M PL 4240
Depth Of Cut Max 0.6299
