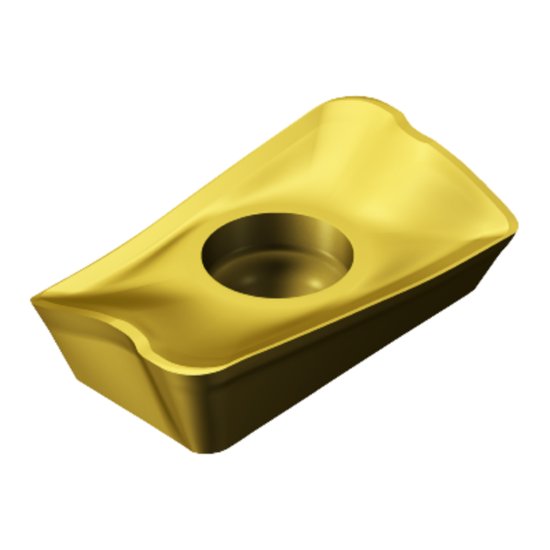

Picture of Sandvik R390-17 04 08M-PL 1025 CoroMill 390 Insert; 90 degree shoulder Milling

Sandvik R390-17 04 08M-PL 1025 CoroMill 390 Insert; 90 degree shoulder Milling

Part Number: SAN5746846 ISO: R390-17 04 08M-PL 1025 ANSI:R390-17 04 08M-PL 1025

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1191480
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10
SANDVIK 5746846 Parallelogram Insert Positive TiAIN + TiN PVD TiAlN+TiN FOR GENERAL PURPOSE MACHINGING, GOOD FOR ALL MATERIALS
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Aluminum, Stainless Steel, <40HRC Steel, Ductile Iron, High Temp
Coating TiAIN + TiN
Insert/Tool INSERT
Insert Application Finishing
Corner Radius 0.0320 0.81MM
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Grade 1025
Insert Type Positive
Insert Fits Parallelogram
Hand Right Hand
ISO Space R390 17 04 08M PL 1025
Depth Of Cut Max 0.6299
