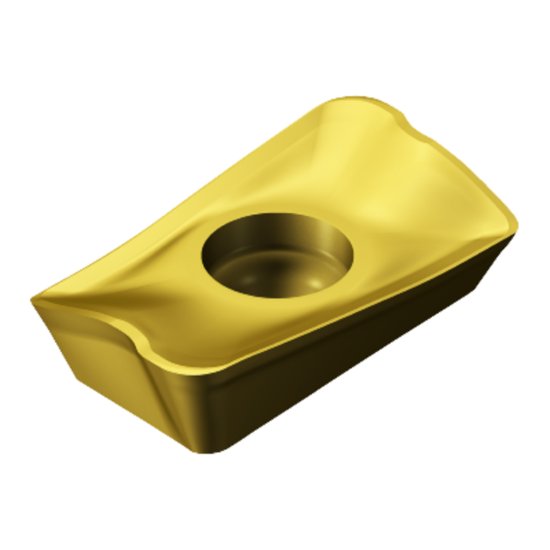

Picture of Sandvik R390-17 04 08E-ML 2030 CoroMill 390 Insert; 90 degree shoulder Milling

Sandvik R390-17 04 08E-ML 2030 CoroMill 390 Insert; 90 degree shoulder Milling

Part Number: SAN5745602 ISO: R390-17 04 08E-ML 2030 ANSI:R390-17 04 08E-ML 2030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1191400
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10
SANDVIK 5745602 Parallelogram Insert Positive TiAIN + TiN PVD TiAlN+TiN Medium-hard, thin coated PVD grade for light roughing to finishing. Complement to GC1040 in good stability, for high cutting speeds in dry conditions.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Stainless
Coating TiAIN + TiN
Insert/Tool INSERT
Insert Application Finishing
Corner Radius 0.0320 0.81MM
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Grade 2030
Insert Type Positive
Insert Fits Parallelogram
Hand Left Hand
ISO Space R390 17 04 08E ML 2030
Depth Of Cut Max 0.6181
