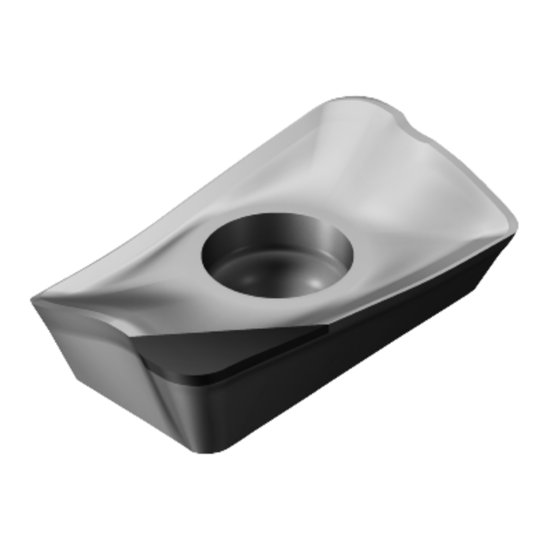

Picture of SANDVIK R390-11T304E-P4-NL CD10 CoroMill 390 Insert; 90 degree shoulder Milling

SANDVIK R390-11T304E-P4-NL CD10 CoroMill 390 Insert; 90 degree shoulder Milling

ANSI: R390-11T304E-P4-NL CD10

ISO: R390-11T304E-P4-NL CD10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5745449
Delivery date: 3-5 days
$159.65
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Details

R390-11T304E-P4-NL CD10 Sandvik CoroMill® 390, PCD Insert for Milling, Uncoated

Grade and Coating Description

PVD-grade recommended for stable conditions when high metal removal is needed in medium to rough applications.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing
Insert Type Positive
Sold by Pieces 10
Additional Key Information 2 Parallelogram
Material # Material#10, Material#16, Material#20
Grade CD10
Shipping State Illinois
Package Size 10
Insert/Tool Insert
Additional Key Information 1 Insert
Application Milling Insert
Uncategorized
Made In USA No
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Cut Rating Aluminum, Gray Iron, High Temp
Depth Of Cut Max 0.1575
Cutting & Machining Properties
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Cutting Edge Mat PCD
