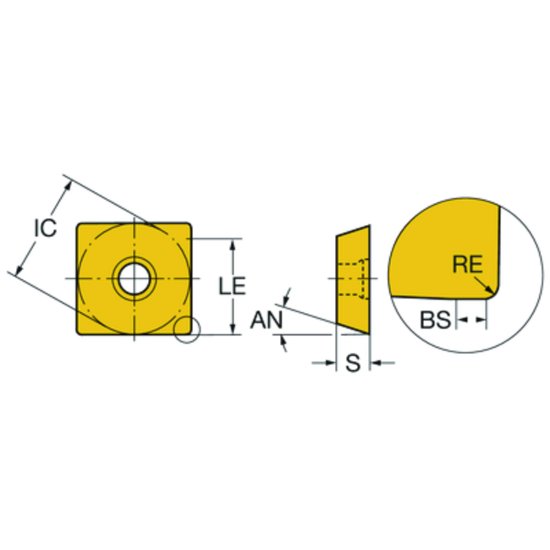

Picture of Sandvik R290.90-12T320M-PH 4230 CoroMill 290 Insert; 90 degree shoulder Milling

Sandvik R290.90-12T320M-PH 4230 CoroMill 290 Insert; 90 degree shoulder Milling

Part Number: SAN5744172 ISO: R290.90-12T320M-PH 4230 ANSI:R290.90-12T320M-PH 4230
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1191013
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

SANDVIK 5744172 Square Insert Positive TiCN + Al2O3 + TiN CVD TiCN+Al2O3+TiN GREY IRON, DUCTILE IRON, STEELS.USED GENERAL PURPOSE
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Roughing
Insert Style R290
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Insert Size Ic 12
Geometry & Angles
Corner Radius 0.0790 2.01MM
Performance & Capacity
Cut Rating <40HRC Steel, Ductile Iron
Depth Of Cut Max 0.4213
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + Al2O3 + TiN
Grade 4230
Compatibility & Fit
Insert Fits Square
