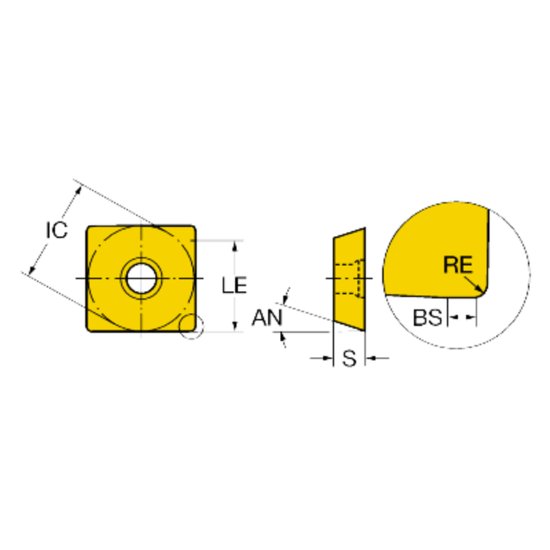

Picture of SANDVIK R290-12T308M-Powder Metal 530 CoroMill 290 Insert; 90 degree shoulder Milling

SANDVIK R290-12T308M-Powder Metal 530 CoroMill 290 Insert; 90 degree shoulder Milling

ANSI: R290-12T308M-PM 530

ISO: R290-12T308M-PM 530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5744236
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

R290-12T308M-PM 530 Sandvik CoroMill® 290, Cermet Insert for Milling, Uncoated

Grade and Coating Description

CERMET FOR STEEL AND STAINLESS

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 10
Insert Application Medium
Insert/Tool Insert
Additional Key Information 1 Insert
Application Milling Insert
Material # Material#3, Material#8
Grade 530
Insert Type Positive
Additional Key Information 2 Square
Package Size 10
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Insert Size Ic 12
Corner Radius 0.0320 0.81MM
Cut Rating <40HRC Steel, Stainless Steel
Depth Of Cut Max 0.4213
Cutting & Machining Properties
Hand R/L Neutral
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape Square
Insert Style R290
