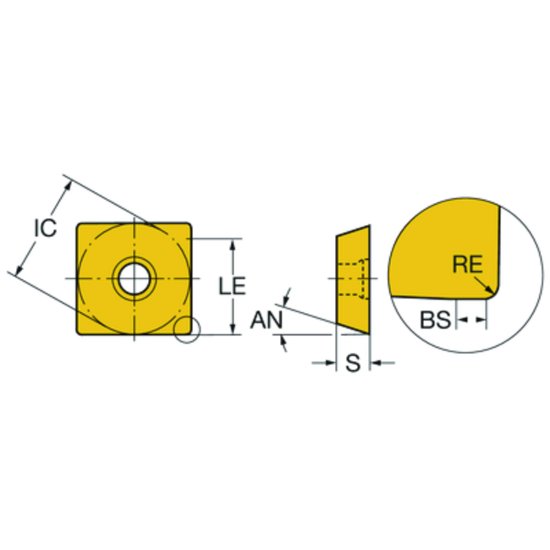

Picture of Sandvik R290-12T308M-Powder Metal 1030 CoroMill 290 Insert; 90 degree shoulder Milling

Sandvik R290-12T308M-Powder Metal 1030 CoroMill 290 Insert; 90 degree shoulder Milling

Part Number: SAN5744205 ISO: R290-12T308M-PM 1030 ANSI:R290-12T308M-PM 1030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: 1191260
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
SANDVIK 5744205 Square Insert Positive TiAlN PVD TiAlN TOUGH GRADE FOR GENERAL PURPOSE, USE HEAVY INTERUPTIONS,SCALE OR LOW RIGIDITY CUTTING
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Stainless Steel, High Temp, <40HRC Steel, Ductile Iron
Coating TiAlN
Insert/Tool INSERT
Cut Type Medium
Corner Radius 0.0320 0.81MM
Insert Style R290
Insert Shape/Cutter Pocket Shape Square
Grade 1030
Insert Type Positive
Insert Size Ic 12
Insert Fits Square
Hand Right Hand
Depth Of Cut Max 0.4213
