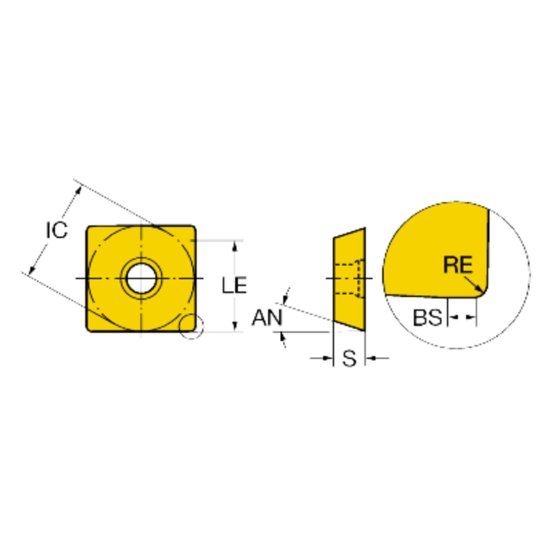

Picture of Sandvik R290-12T308E-PL 530 CoroMill 290 Insert; 90 degree shoulder Milling

Sandvik R290-12T308E-PL 530 CoroMill 290 Insert; 90 degree shoulder Milling

Part Number: SAN5744213 ISO: R290-12T308E-PL 530 ANSI:R290-12T308E-PL 530
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1191381
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

SANDVIK 5744213 Square Insert Positive Uncoated CERMET FOR STEEL AND STAINLESS
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Finishing
Insert Style R290
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Neutral
Dimensions & Sizing
Insert Size Ic 12
Geometry & Angles
Corner Radius 0.0320 0.81MM
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Depth Of Cut Max 0.2362
Materials & Finish
Cutting Edge Mat Cermet
Grade 530
Compatibility & Fit
Insert Fits Square
