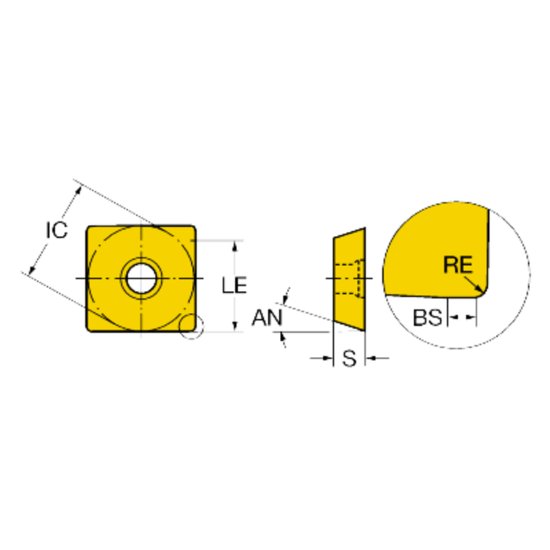

Picture of Sandvik R290-12T308E-PL 1025 CoroMill 290 Insert; 90 degree shoulder Milling

Sandvik R290-12T308E-PL 1025 CoroMill 290 Insert; 90 degree shoulder Milling

Part Number: SAN5744269 ISO: R290-12T308E-PL 1025 ANSI:R290-12T308E-PL 1025
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1191211
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

SANDVIK 5744269 Square Insert Positive TiAIN + TiN PVD TiAlN+TiN FOR GENERAL PURPOSE MACHINGING, GOOD FOR ALL MATERIALS
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Finishing
Insert Style R290
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Neutral
Dimensions & Sizing
Insert Size Ic 12
Geometry & Angles
Corner Radius 0.0320 0.81MM
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <40HRC Steel, Ductile Iron, High Temp
Depth Of Cut Max 0.2362
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAIN + TiN
Grade 1025
Compatibility & Fit
Insert Fits Square
